MDO-2000E Series Mixed-domain Oscilloscopes

MDO-2000E Series Mixed-domain Oscilloscopes

GW Instek , Oscilloscope

- 200/100/70MHz bandwidth selections ; 2 or 4 channels

- Real time sample rate for each channel is 1GSa/s (2 channel models)

- Maximum real time sample rate is 1GSa/s (4 channel models)

- Per Channel 10M memory depth and VPO waveform display technology

- Waveform update rate up to 120,000 wfms/s

- 8 “ WVGA TFT LCD display

- Free Frequency Response Analyzer Software

- Maximum 1M FFT provides higher frequency domain resolution measurements

- High ,low and band pass filter functions

- 29,000 segmented memories and waveform search functions

- I2C/SPI/UART/CAN/LIN serial bus trigger and decoding function

- Data log function is able to track signal changes up to 1000 hours

- Network storage function

- Mask test function

- MDO-2000EG equips with a spectrum analyzer and a dual channel 25MHz AWG MDO-2000EX equips with a spectrum analyzer ; a dual channel 25MHz AWG; DMM and power supply.

Ordering Info

MDO-2072EX
70MHz , 2-channel, Digital Storage Oscilloscope?Spectrum analyzer ,dual channel 25MHz AWG ,5,000 counts DMM and power supply
MDO-2102EX
100MHz , 2-channel, Digital Storage Oscilloscope?Spectrum analyzer ,dual channel 25MHz AWG ,5,000 counts DMM and power supply
MDO-2202EX
200MHz ,2-channel, Digital Storage Oscilloscope?Spectrum analyzer ,dual channel 25MHz AWG ,5,000counts DMM and power supply
MDO-2072EG
70MHz , 2-channel, Digital Storage Oscilloscope?Spectrum analyzer ,dual channel 25MHz AWG
MDO-2102EG
100MHz , 2-channel, Digital Storage Oscilloscope?Spectrum analyzer ,dual channel 25MHz AWG
MDO-2202EG
200MHz ,2-channel, Digital Storage Oscilloscope?Spectrum analyzer ,dual channel 25MHz AWG
MDO-2074EX
70MHz , 4-channel, Digital Storage Oscilloscope?Spectrum analyzer ,dual channel 25MHz AWG ,5,000 counts DMM and power supply
MDO-2104EX
100MHz , 4-channel, Digital Storage Oscilloscope?Spectrum analyzer ,dual channel 25MHz AWG ,5,000 counts DMM and power supply
MDO-2204EX
200MHz , 4-channel, Digital Storage Oscilloscope?Spectrum analyzer ,dual channel 25MHz AWG ,5,000 counts DMM and power supply
MDO-2074EG
70MHz , 4-channel, Digital Storage Oscilloscope?Spectrum analyzer ,dual channel 25MHz AWG
MDO-2104EG
100MHz , 4-channel, Digital Storage Oscilloscope?Spectrum analyzer ,dual channel 25MHz AWG
MDO-2204EG
200MHz ,4-channel, Digital Storage Oscilloscope?Spectrum analyzer ,dual channel 25MHz AWG

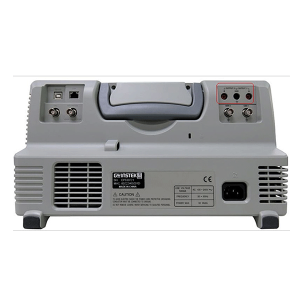

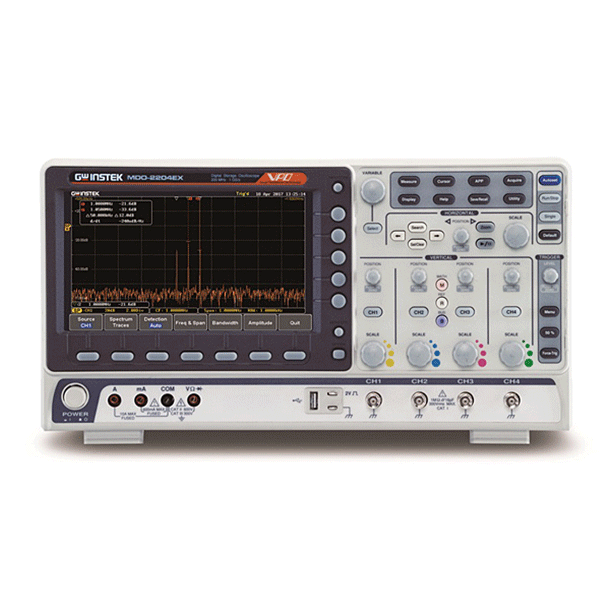

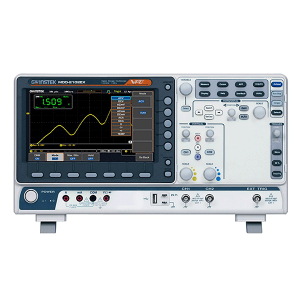

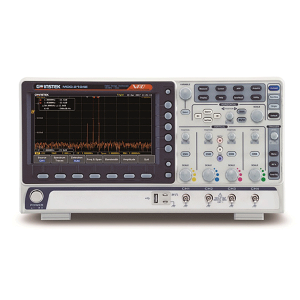

MDO-2000E series is multi-functional mixed domain oscilloscope. The series includes two feature combinations : MDO-2000EG and MDO-2000EX. MDO-2000EG models have a built-in spectrum analyzer and a dual channel 25MHz arbitrary waveform generator and MDO-2000EX models feature a built-in a spectrum analyzer, arbitrary waveform generator, a 5,000 count DMM, and a 5V/1A power supply. The first of its kind, MDO-2000EX is the only oscilloscope to equip with a DMM and a power supply in the T&M industry.

Accessory
User Manual CD x1, Power Code x1
GTL-110

BNC-BNC cable*2

GTL-105A

Alligator Clip test lead (only on MDO-2000EX)

GTL-207

Banana plug test lead (only on MDO-2000EX)

GTP-070B-4

70MHz(10:1/1:1)Switchable passive probe for MDO-2072E(X)/2074E(X)(one per channel)

GTP-100B-4

100MHz(10:1/1:1)Switchable passive probe for MDO-2102E(X)/2104E(X)(one per channel)

GTP-200B-4

200MHz(10:1/1:1)Switchable passive probe for MDO-2202E(X)/2204E(X)(one per channel)



Optional Accessories
GRA-426

Rack Adapter Panel

GAK-003

50 Impedance Adapter

GSC-008

Soft Carrying Case

GTL-246 USB Cable, USB 2.0, A-B Type, 1200mm
GDB-03 Oscilloscope Education & Training Kit
GTP-033A Oscilloscope Probe, 35MHz 1:1 Passive Probe, BNC(P/M)
GCP-020 Current Probe, 40Hz~40kHz, 240A, Current Probe
GCP-100 Current Probe, DC~100KHz, 100A, Current Probe
GCP-1030 Current Probe, DC~100MHz, 30Arms, Current Probe
GCP-206P Current Probe - Power Supply, 2 Channel Power Supply for GCP-530/1030
GCP-425P Current Probe - Power Supply, 4 Channel Power Supply for GCP-530/1030
GCP-530 Current Probe, DC~50MHz, 30Arms, Current Probe
GDP-025 Differential Probe, 25M High Voltage Differntial Probe
GDP-050 Differential Probe, 50M High Voltage Differntial Probe
