- 100/70/50 MHz Bandwidth with 2 Input Channels
- 250MSa/s Real-Time and 25GSa/s Equivalent-Time Sampling
- 4k Memory Length per Channel
- Peak Detect as Fast as 10ns
- Save/Recall of 15 Front Panel Settings & Waveforms
- 5.7" TFT Color Display
- 19 Auto Measurements
- Arithmetic Operators - Add, Subtract, FFT
- USB Port for PC Connection
- Data Logger
- Limited Lifetime Warranty

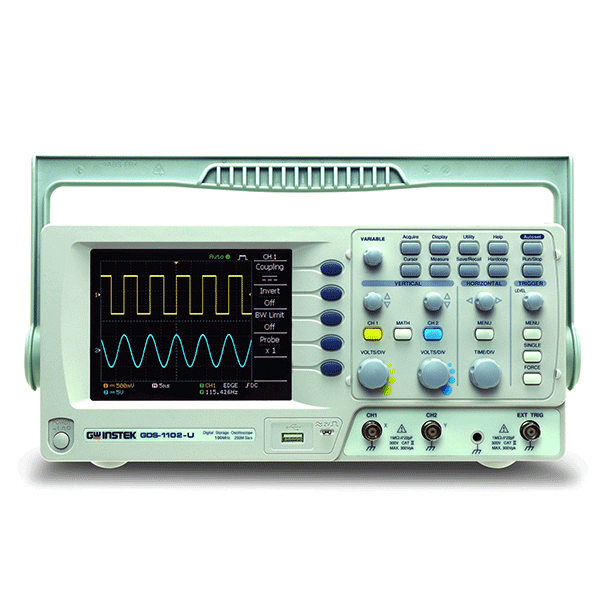

The GDS-1000-U Series offers 100MHz, 70MHz and 50MHz digital storage oscilloscopes with 5.7" color TFT LCD displays. With dual sampling modes, a 4,000 point record length, a real-time sampling rate of 250MSa/s and an ET sampling rate of 25GSa/s, the GDS-1000-U Series DSO provides an excellent balance of performance between memory length and sampling speed. Other major features include user-friendly menu tree operations, compact size, ergonomic design, USB host for PC connectivity and USB device port support. The GDS-1000-U Series is designed to meet today's most demanding engineering requirements and budgets.
| Accessory | |
| User Manual CD x1, Power Code x1 | |
| GTP-070B-4 |
70MHz (10:1/1:1) Switchable passive probe for GDS-1052-U (one per channel) |
| GTP-070B-4 |
70MHz (10:1/1:1) Switchable passive probe for GDS-1072-U (one per channel) |
| GTP-100B-4 |
100MHz (10:1/1:1) Switchable passive probe for GDS-1102-U (one per channel) |
| Optional Accessories | |
| GTL-246 |
USB Cable, USB 2.0, A-B Type, 1200mm |
| GTL-110 |
Test Lead, BNC-BNC Heads |
| GSC-006 |
Soft carrying case |
