- 150/100/70MHz Bandwidths
- 1GSa/s Real-Time Sample Rates Maximum, 25GSa/s Equivalent-Time
- 2Mega Points Record Length
- 2mV~10V Vertical Scale
- 1ns~50s Horizontal Range
- Up to 27 Automatic Measurements
- 5.7" TFT LCD Display
- USB Host and Device Interface Supported
- Go/NoGo Function
- Data Logger
- Limited Lifetime Warranty
Rp. 14,500,000 10%

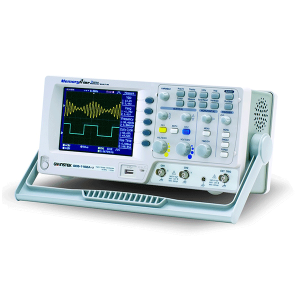

The GDS-1000A-U series provide a unique solution. The GDS-1000A-U lineup includes GDS-1152A-U, GDS-1102A-U and GDS-1072A-U three models. Operating at 150, 100 or 70 MHz with a real-time sampling rate of 1GSa/s, the GDS-1000A-U employs MemoryPrime technology . Using MemoryPrime technology, the GDS-1000A-U is able to overcome the problems associated with memory constraints. High sample rates, rarely found in traditional DSOs, can be maintained over longer periods of time, without effecting performance.
Coupled with the high resolution 5.7” color TFT display, with user-friendly interface USB device and host port make the GDS-1000A-U series feature-rich. Furthermore, the GDS-1000A-U series provide a lifetime warranty program!
| Accessory | |
| User Manual CD x1, Power Code x1 | |
| GTP-070B-4 |
70MHz (10:1/1:1) Switchable passive probe for GDS-1072A-U (one per channel) |
| GTP-100B-4 |
100MHz (10:1/1:1) Switchable passive probe for GDS-1102A-U (one per channel) |
| GTP-150B-4 |
150MHz (10:1/1:1) Switchable passive probe for GDS-1152A-U (one per channel) |
| Optional Accessories | |
| GTL-246 |
USB Cable, USB 2.0, A-B Type, 1200mm |
| GTL-110 |
Test Lead, BNC-BNC Heads |
| GSC-006 |
Soft carrying case |
