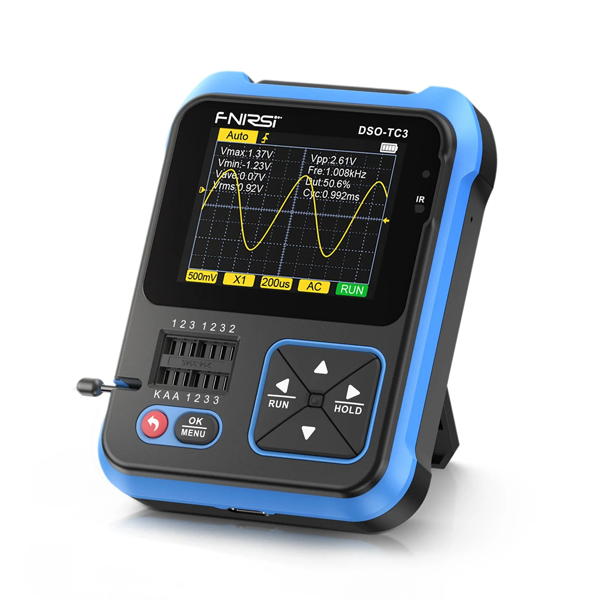

FNIRSI DSO-TC3 ingeniously integrates digital oscilloscope, electronic component tester, function signal generator and other functions into one. Equipped with 2.4 Inch TFT display. Built-in rechargeable lithium battery.
DSO-TC3 handheld oscilloscope, 10 MS/s sampling rate, 500 kHz bandwidth. It can be used freely for both periodic analog signals and aperiodic digital signals. Equipped with one-key AUTO, the measured waveform can be displayed without cumbersome adjustment.
DSO-TC3 transistor tester can identify and measure various transistors, including NPN and PNP transistors, N-channel and P-channel field effect transistors etc. Automatic detection of pin definition. Automatically analyze NEC protocol infrared code.
DSO-TC3 transistor tester is suitable for pairing of transistors, identification of mixed surface mount, and preliminary screening of small batch components. "Mos Test" mode can test various types of transistors and test capacitance, resistance etc.
Other functional modes: Including circuit continuity test, 0-40 V input voltage measurement, PWM output, 0-32 V regulated diode measurement, DS18B20 temperature sensor measurement, DHT11 temperature and humidity sensor measurement.
Six waveforms: sine, square, pulse stroke, triangle, ramp and DC.
FNIRSI DSO-TC3 combines a digital Electronic measuring instrument, electronic component tester, signal generator, continuity test, voltage test, temperature and humidity measurement, infrared decoding and other functions are skillfully integrated. It is equipped with a 2.4-inch color TFT display, built-in rechargeable lithium battery, brings users stronger and more practical functions with good portability.
FNIRSI DSO-TC3 is an upgraded version of DSO-TC2. On the basis of DSO-TC2, it has upgraded capacitance ESR detection, function signal generator output, Electronic measuring instrument bandwidth and sampling rate improvement, input voltage and diode detection range increase and so on. The improvement in performance and function of DSO-TC3 makes the device more stable and accurate in the detection process.
| Real-time sample rate | 10MSa/s | Analog Bandwidth | 500KHz |
|
Input resistance |
1MΩ |
Coupling method | AC/DC |
| Test voltage range |
400V |
Vertical Sensitivity (x1) |
10mV-10V |
| Horizontal time base range | 1us-10s | Trigger mode | Auto / Normal / Single |
| Trigger type | Rising edge / Falling edge | Waveform Freeze | Yes |
| Automatic measurement | Yes | ||
