Features

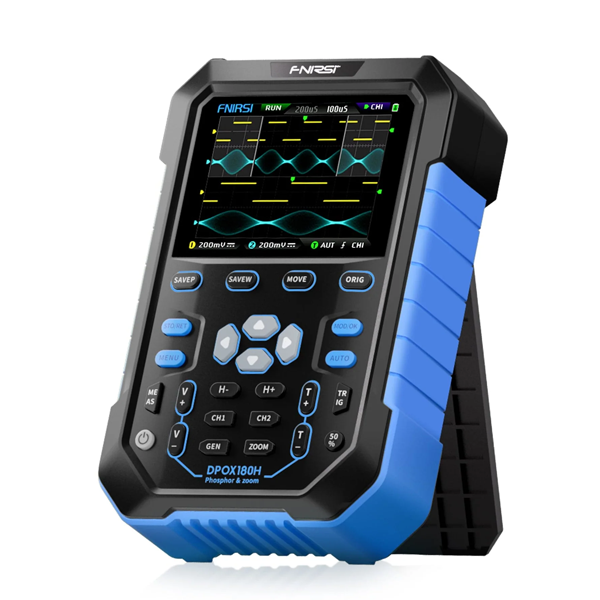

The DPOX180H is a cost-effective, handheld dual-channel digital phosphor oscilloscope from FNIRSI, combining an oscilloscope and signal generator. It features a 500MSPS real-time sampling rate, 180MHz bandwidth, and a 2.8-inch high-contrast IPS LCD. With a refresh rate of up to 50,000 waveforms per second, it captures even rare signal anomalies. The ZOOM time base aids digital protocol analysis, and with 5mV sensitivity, it can measure small signals accurately. Key features include noise filtering, a high-precision digital trigger with three modes, and a DDS signal generator supporting up to 20MHz. Additional functions include one-button auto adjustment, waveform storage for up to 250 sets, high-voltage protection up to 400V, USB export, and fast charging (5V/2A).
| Brand | FNIRSI | Model | DPOX180H |
|
Number of Channels |
2 |
Analog Bandwidth | 180MHz |
| Max Waveform Capture Rate |
50000wfm/s |
Real Time Sampling Rate |
500MSa/s |
| Maximum Sampling Rate | 500MSPS | Input Coupling | DC/AC |
| Rise Time | 2.5nS | Storage Depth | 120Kpts |
| Water Resistance Level | IPX6 | Input Impedance | 1MΩ-18PF |
| Vertical Sensitivity | 5mV ~ 10V(1X) | Time Base Range | 5nS ~ 50S |
| DC Accuracy | ±2% | Time Accuracy | ±0.01% |
| Measurement Range | 40mV ~ 80V(1X) | Digital Phosphor Technology | Support |
| Color Temperature Display | Support | Zoom Scaling Time Base | Support |
| 20M Hardware Bandwidth Limitation | Support | Adjustable Automatic Bandwidth Limitation | Support |
| X-Y Mode | Support | FFT | Support |
| Cursor Measurement | Frequency / Period / Amplitude | Trigger Detection | Digital Trigger |
| Trigger Mode | Auto / Single / Normal | Trigger Edge | Rising / Falling |
| Roll Mode | Support | Screenshot Storage | 90 |
| Waveform Storage | 250 Groups | Capture Signal | 500 |
| Parameter Measurement | 12 Kinds | Signal Generator | 14 Standard Function Signals |
| Auto-adjustment | Support | Waveform Manager | Support |
| Waveform Output | Support | High-voltage Burnout Protection | Support |
| Screen Size | 2.8 Inches | Screen Resolution | 320x240 Pixels |
| Display Technology | IPS Full View | Expansion Interface | USB Transmission Interface |
| Auto Power-off | 5 minutes ~ 2 hours | Firmware Upgrade | Support |
| Charging Requirements | 5V 2A | Battery Capacity | 3000mAh |
| Standby Time | 3.5 Hours at Full Charge | Dimensions | 135x90x40mm |
