? 2-Channel Oscilloscope Multimeter: Upgraded from 2C23T. The 2C53P oscilloscope has 250 MS/s sampling rate, 50 MHz bandwidth. Multimeter 19999 counts, 5 measuring values, max and min display. 4.3-inch IPS touch screen, 480*272 high resolution.
? DDS Signal Generator: Outputs 12 waveforms with a maximum frequency of 10 MHz. The FPGA+MCU+ADC architecture ensures strong waveform capture and supports waveform saving, viewing, and export for analysis.
? Efficiency Improvement: Features one-key AUTO for quick measurements and simplified operations, with automatic/normal/single trigger modes. Suitable for both periodic analog and non-periodic digital signals.
? Comprehensive Analysis: X-Y mode compares phase, amplitude, and frequency of two signals, while FFT spectrum analysis estimates harmonic content and manages complex signals.
? Long Battery Life: Built-in 4000mAh battery provides up to 4 hours of use, with Type-C charging for uninterrupted work.

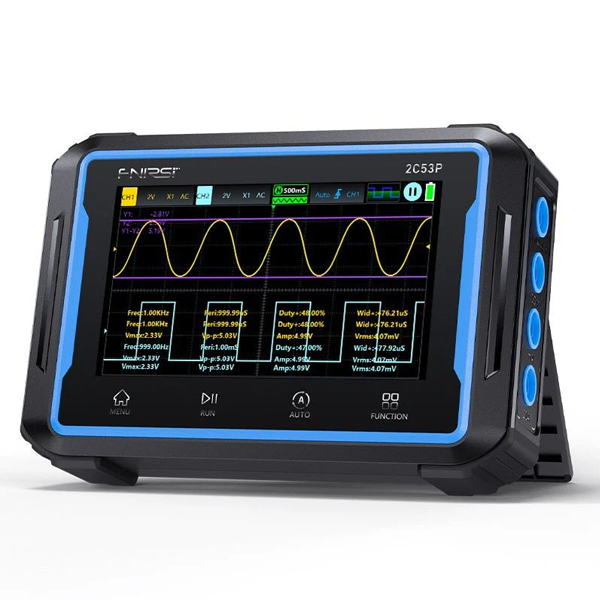

FNIRSI 2C53P is a dual-channel digital oscilloscope with comprehensive functions and high practicality. This device has 3 major functions:
1. The oscilloscope adopts FPGA+MCU+ADC hardware architecture, has a sampling rate of 250MS/s, an analog bandwidth of 50MHz, and supports a peak voltage measurement of ±400V; It supports waveform screenshots, saving, and viewing;
2. Built-in 4.5-digit 19999-point true RMS multimeter, supports AC and DC voltage and current measurements;
3. The built-in function signal generator can output 12 kinds of function signals, with a maximum output frequency of 10MHz, and the output frequency, amplitude, and duty cycle are adjustable.
It uses a 4.3-inch 480*272 resolution touch display and a built-in 4000mAh rechargeable lithium battery which makes standby time up to 4 hours.
It is an ideal multifunctional instrument for electronic maintenance personnel and electronic major students.
| Brand | FNIRSI | Model | 2C53P |
|
Screen Size & Resolution |
4.3 Inch (480*272 pixels) |
Screen Material | Surface tempered glass + touch screen made of glass + IPS color screen |
| Backlight |
Backlight brightness can be set |
Power Supply |
TYPE-C (5V/2A) |
|
Battery |
4000mAh lithium battery |
Language | Chinese, English, Pycc???, ????, español, Português, Deutsch, ??? |
| Product Size | ≈145x98x35mm | Product Weight | ≈360g |
