- 500/350/250/150MHz with 2/4 Channels
- 5GSa/s RT or 100GSa/s ET Sampling Rate
- Independent Memory for Each Channel
- VPO Technology
- Large 8-inch 800x600 Display
- Split Screen Function
- 3 Built-in Impedances (50Ω/75Ω/1MΩ)
- Power Analysis Software (Optional)
- Serial Bus Analysis Software for I2C, SPI and UART (Optional)
A Hi-tech DSO Platform

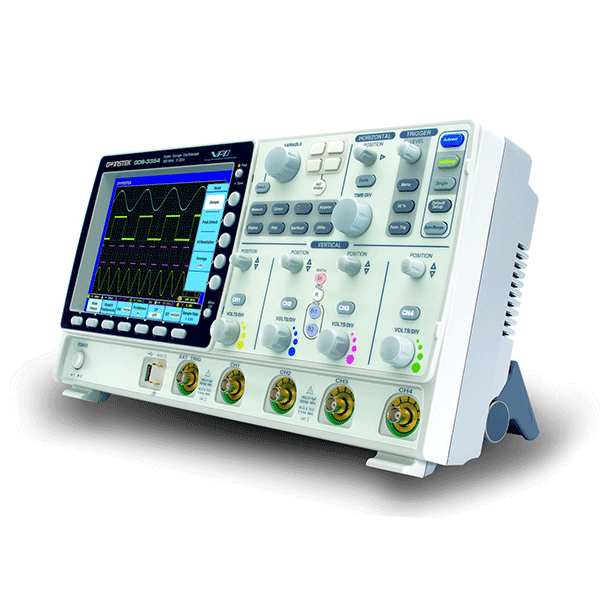

The GDS-3000 Series is a platform of 4-input channels, 500MHz bandwidth, 5GSa/s sampling rate, and VPO waveform display. The split screen feature has been designed to meet the requirements of multi-window & multi-signal tests in the research and the manufacturing fields. The optional power analysis software and the optional serial bus analysis software are available to facilitate the engineer's tasks in testing and manufacturing of the associated products.
The differential probe, GDP-025, GDP-050 & GDP-100, and current probes, GCP-020, GCP-100 and GCP-530 & GCP-1030, are coming along with the GDS-3000 Series to provide total solutions for a wide variety of applications in the industry, service and education market sectors. The GDS-3000 Series, a high-tech platform carrying thoughtful features, brings very high customer value to both general purpose market and professional market.
Accessory | |
User manual CD x 1 , Power cord x1 | |
GTP-151R |
150MHz(10:1) passive probe for GDS-3152/ 3154 (per channel) |
GTP-251R |
250MHz(10:1) passive probe for GDS-3252/ 3254 (per channel) |
GTP-351R |
350MHz(10:1) passive probe for GDS-3352/ 3354 (per channel) |
GTP-501R |
500MHz(10:1) passive probe for GDS-3502/ 3504 (per channel) |
Optional Accessories | |
GUG-001 |
GPIB to USB adapter |
GTP-033A |
35MHz 1:1 passive probe |
GTP-352R |
350MHz(20:1) passive probe |
GDP-025 |
25MHz high voltage differential probe |
GDP-050 |
50MHz 25MHz high voltage differential probe |
GDP-100 |
100MHz 25MHz high voltage differential probe |
GCP-005 |
1kHz/5A Current probe |
GCP-020 |
10kHz/200A Current probe |
GCP-100 |
100KHz/100A Current probe |
GCP-530 |
50MHz/ 30A Current probe |
GCP-1030 |
100MHz/ 30A Current probe |
GCP-206P |
Power supply for current probe (2 input channels) |
GCP-425P |
Power supply for current probe (4 input channels) |
GTL-248 |
GPIB Cable, Double Shielded, 2000mm |
GTL-251 |
USB-GPIB Adapter, GPIB-USB-HS, USB 2.0, Hi-Speed USB compliance, 2000mm |
GSC-008 |
Soft Carrying Case |
GTL-110 |
Test lead, BNC to BNC connector |
GTL-232 |
RS-232C cable, 9-pin female to 9-pin female, Null Modem for computer |
GTL-246 |
USB 2.0 cable, A-B type cable 4P, 1800mm |
GRA-411 |
Rack Adapter Panel |
GDB-03 |
Oscilloscope Education and Training Kit |
GKT-100 |
Deskew fixture |
