Key Features

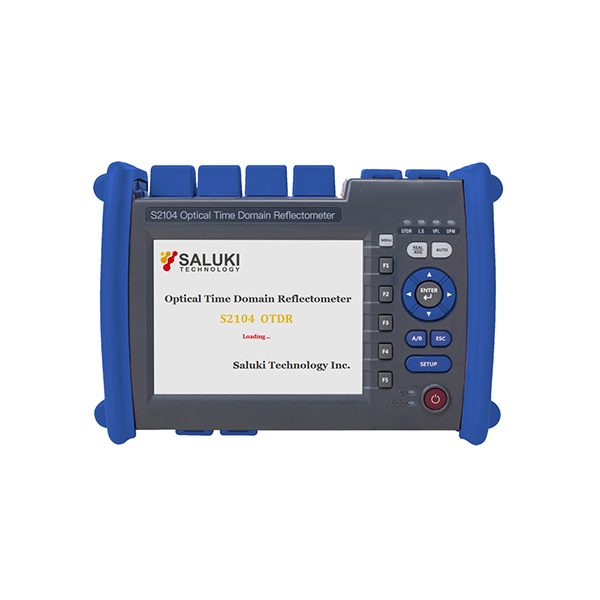

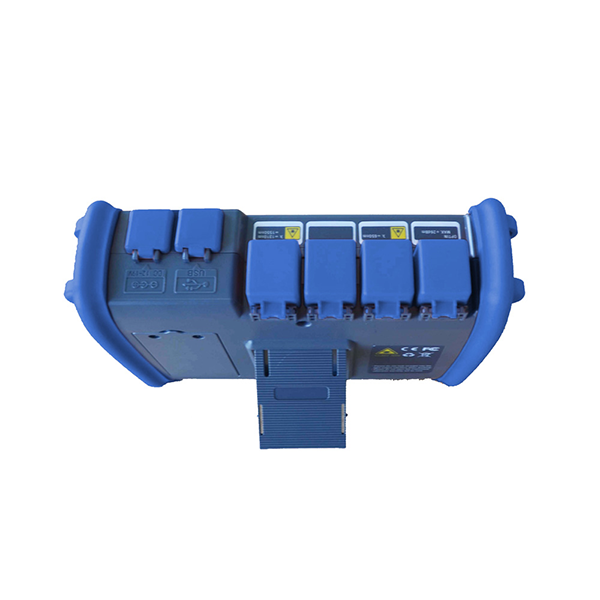

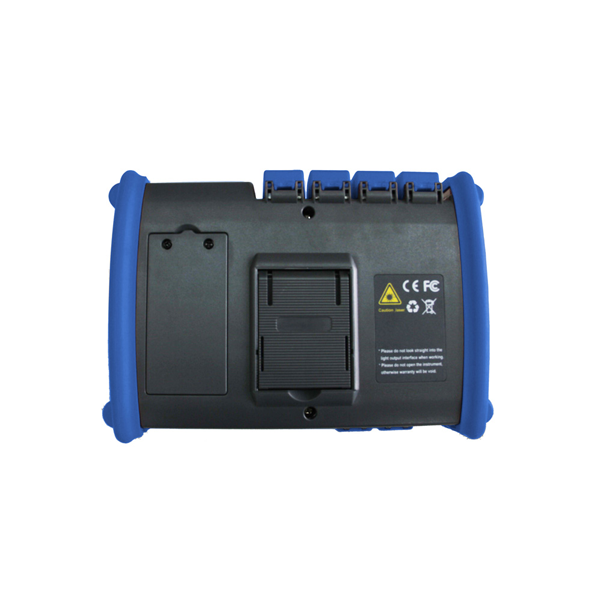

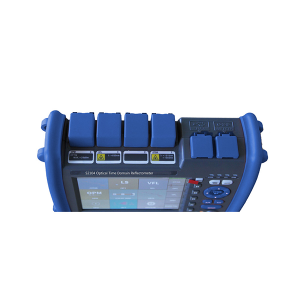

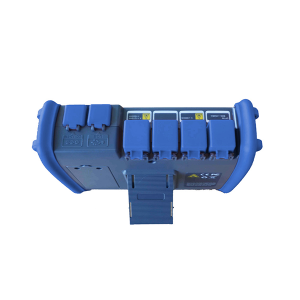

Saluki S2104 Optical Time Domain Reflector is a high performance multi-function test instrument designed for the FTTx network. The product has a range resolution of up to 0.05m and a ultra-short event dead zone of 1m.
This product integrates OTDR, laser source (LF), optical power meter (OPM) and visual fault location (VFL) function all in one. It adopts touch and button dual operation mode. The product has rich external interface, which can realize remote control through Ethernet interface or two different USB interface for external USB flash drive, printer and data communication with PC. The device management results can display information with cable name, start point, end point and the numeric character.
Applications
| FTTx test
| CATV network testing
| Access network testing
| LAN network testing
| Metro network testing
| Lab and Factory testing
| Live fiber troubleshooting
Technical Specifications
|
Parameters |
Specifications |
|
Dynamic Range |
32/30dB @ 1310nm / 1550nm |
|
Measuring Accuracy |
±(0.75m + Sampling interval + 0.005% x test distance) (Refractive error are not included) |
|
Max. Sampling Resolution |
0.05m |
|
Display Resolution |
0.01dB |
|
Measurement Range (km) |
0.5, 1, 2, 4, 8, 16, 32, 64, 128, 256km |
|
Pulse Widths (ns) |
5, 10, 50, 160, 320, 500, 1000, 5000, 10000, 20000ns |
|
Event Dead Zone |
1M |
|
Attenuation Dead Zone |
6M |
|
Loss Threshold (dB) |
0.01dB |
|
Sampling Points |
128k |
|
Linearity |
0.05dB/dB |
|
Loss Resolution |
0.001dB |
|
Memory Capacity |
>= 2000 traces |
|
External Interface |
USB, Min-USB, RJ-45 |
|
Optical Interface |
FC / PC / SC / ST (Optional) |
|
VFL Output |
650nm±10nm, >= 5mW (typical) |
|
Communication interface |
USB, Mini USB, 10M/100M Ethernet |
|
LS Output |
>= -5dBm |
|
OPM |
+26dBm to -50dBm (replaceable: +6dBm to -70dBm) |
|
Optical Power Meter |
Wavelength: 1200nm - 1650nm, Power Range: -50 to +26dBm |
|
Wavelength |
1310±20nm / 1550±20nm |
|
Stable Light Source |
1310/1550nm: -5dBm, CW (270Hz, 1K 270Hz, 2K 270Hz) |
|
Laser Source Information |
CFR class 1 |
|
IOR Range |
1.0 - 2.0 |
|
Data Archive |
SOR (standard format), PDF (analysis software) |
|
FTTx GPON Measurement Splitter |
1:16 / 1:8 |
|
Device Remote Control |
By LAN |
|
Distance Unit |
m, km |
|
Given Pass/Fail Results |
Yes |
|
One-button Automatic Funtion |
Yes |
|
Multitasking Function |
Yes |
Genaral Information
|
Display |
5.8 inch color LCD touch screen, English lInterface |
|
Battery |
7.4V / 6700mAh Lithium battery, max. 12 hours working time |
|
Power Supply |
AC /DC Adaptor 100V-240V, 50/60Hz, 0.6A |
|
Environment |
Operating Temperature: -5 - +50ºC / Storage: -20 - +70ºC, |
|
Dimension / Weight |
227mmx160mmx70mm / <=1.1kg |
Standard Configuration Comparison of S2102/2104/2106 OTDR
| Function | OTDR | LS | VFL | OPM | OLT | Event Map (iOLM) |
| S2102 | Yes | |||||
| S2104 | Yes | Yes | Yes | Yes | ||
| S2106 | Yes | Yes | Yes | Yes | Yes | Yes |
Standard Package
|
Num |
Name |
Quantity |
|
1 |
OTDR host |
1 Set |
|
2 |
AC/DC power adaptor |
1 PC |
|
3 |
Udisk (containing client simulation analysis software) |
1 PC |
|
4 |
Touch Pen |
1 PC |
|
5 |
Data Line |
1 PC |
|
6 |
OTDR SC adapter |
1 PC |
|
7 |
OPM SC adapter |
1 PC |
|
8 |
User's manual |
1 PC |
|
9 |
Certificate of quality |
1 PC |
|
10 |
Certificate |
1 PC |
|
11 |
Warranty card |
1PC |
|
12 |
Alcohol clean cotton sheet |
5 PC |
|
13 |
Special backpack for instrument (containing suspenders) |
1 PC |
