Key Features

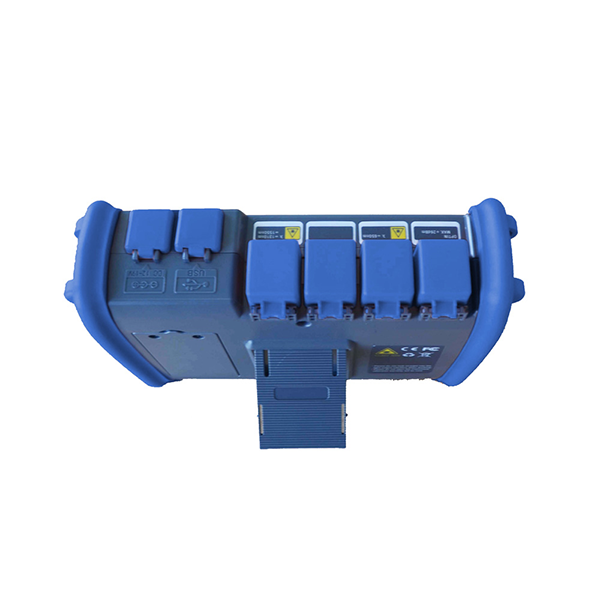

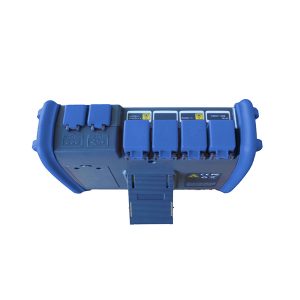

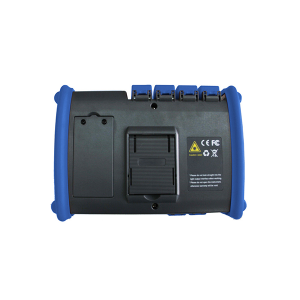

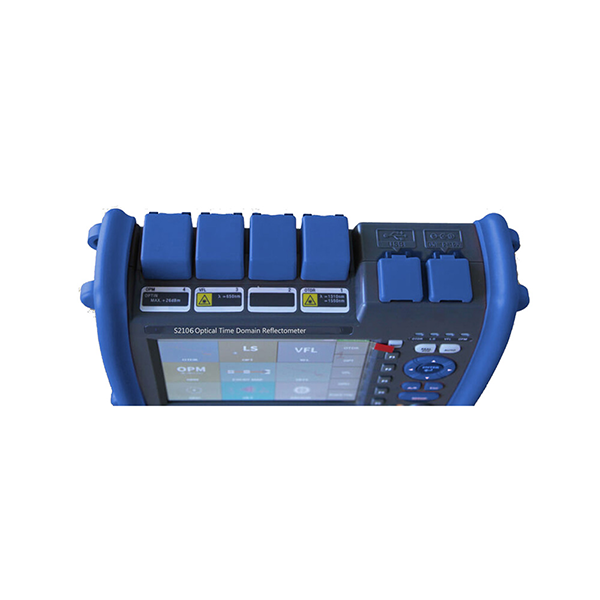

Saluki S2106 series optical time domain reflectometer is a new generation of portable and intelligent measuring instrument designed for testing optical fiber communication system.
This product integrates OTDR, laser source (LS), optical power meter (OPM), visual fault location(VFL), event map (iOLM) and optical loss test (OLT) function all in one. It adopts touch and button dual operation mode. The product has rich external interface, which can realize remote control through Ethernet interface or two different USB interface for external USB flash drive, printer and data communication with PC. The device management results can display information with cable name, start point, end point and the numeric character.
Applications
| FTTx test
| CATV network testing
| Access network testing
| LAN network testing
| Metro network testing
| Lab and Factory testing
| Live fiber troubleshooting
Technical Specifications
|
Parameters |
Specifications |
||||||||
| Item | S1 | S2 | S3 | S4 | T1 | T2 | OL1 | M1 | SM1 |
| Fiber Type | SMF | MMF | SMF/MMF | ||||||
| Wavelength (nm) | 1310/ 1550 | 1310/1490/1550 | 1310/1550/1625 | 1310/1550/1625 | 830/1300 | 830/1300/1310/1550 | |||
|
Dynamic Range (dB) |
35/33 |
38/36 | 42/40 | 45/43 | 37/35/35 | 37/35/35 | 37/35/35 | 26/28 | 26/28/37/35 |
| Event Dead Zone (m) | 1 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 1 | 1 |
| Attenuation Dead Zone (m) | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
|
Measuring Accuracy |
±(0.75m + Sampling interval + 0.005% x test distance) (Refractive error are not included) |
||||||||
|
Max. Sampling Resolution |
0.05m |
||||||||
|
Display Resolution |
0.01dB |
||||||||
|
Measurement Range (km) |
0.5, 1, 2, 4, 8, 16, 32, 64, 128, 256km |
||||||||
|
Pulse Widths (ns) |
5, 10, 50, 160, 320, 500, 1000, 5000, 10000, 20000ns |
||||||||
|
Loss Threshold (dB) |
0.01dB |
||||||||
|
Sampling Points |
128k |
||||||||
|
Linearity |
±0.05dB/dB |
||||||||
|
Loss Resolution |
0.001dB |
||||||||
|
Memory Capacity |
>= 2000 traces |
||||||||
|
External Interface |
USB, Min-USB, RJ-45 |
||||||||
|
Optical Interface |
FC / PC / SC / ST (Optional) |
||||||||
|
VFL Output |
650nm±10nm, >= 5mW (typical) |
||||||||
|
Communication interface |
USB, Mini USB, 10M/100M Ethernet |
||||||||
|
LS Output |
>= -5dBm |
||||||||
|
OPM |
+26dBm to -50dBm (replaceable: +6dBm to -70dBm) |
||||||||
|
Optical Power Meter |
Wavelength: 1200nm - 1650nm, Power Range: -50 to +26dBm |
||||||||
|
Stable Light Source |
1310/1550nm: -5dBm, CW (270Hz, 1K 270Hz, 2K 270Hz) |
||||||||
|
Laser Source Information |
CFR class 1 |
||||||||
|
IOR Range |
1.0 - 2.0 |
||||||||
|
Data Archive |
SOR (standard format), PDF (analysis software) |
||||||||
|
FTTx GPON Measurement Splitter |
1:16 / 1:8 |
||||||||
|
Device Remote Control |
By LAN |
||||||||
|
Distance Unit |
m, km |
||||||||
|
Given Pass/Fail Results |
Yes |
||||||||
|
One-button Automatic Funtion |
Yes |
||||||||
|
Multitasking Function |
Yes |
||||||||
Genaral Information
|
Display |
5.8 inch color LCD, English lInterface |
|
Battery |
7.4V / 6700mAh Lithium battery, max. 12 hours working time |
|
Power Supply |
AC /DC Adaptor 100V-240V, 50/60Hz, 0.6A |
|
Environment |
Operating Temperature: -5 - +50ºC / Storage: -20 - +70ºC, |
|
Dimension / Weight |
227mmx160mmx70mm / <=1.1kg |
Standard Configuration Comparison of S2102/2104/2106 OTDR
| Function | OTDR | LS | VFL | OPM | OLT | Event Map (iOLM) |
| S2102 | Yes | / | / | / | / | / |
| S2104 | Yes | Yes | Yes | Yes | / | / |
| S2106 | Yes | Yes | Yes | Yes | Yes | Yes |
Options of S2106 OTDR
| Option No. | Item |
| S2106-01 | Optical fiber end detect (OFD) |
Standard Package
|
Num |
Name |
Quantity |
|
1 |
OTDR host |
1 Set |
|
2 |
AC/DC power adaptor |
1 PC |
|
3 |
Udisk (containing client simulation analysis software) |
1 PC |
|
4 |
Touch Pen |
1 PC |
|
5 |
Data Line |
1 PC |
|
6 |
OTDR SC adapter |
1 PC |
|
7 |
OPM SC adapter |
1 PC |
|
8 |
User's manual |
1 PC |
|
9 |
Certificate of quality |
1 PC |
|
10 |
Certificate |
1 PC |
|
11 |
Warranty card |
1PC |
|
12 |
Alcohol clean cotton sheet |
5 PC |
|
13 |
Special backpack for instrument (containing suspenders) |
1 PC |
