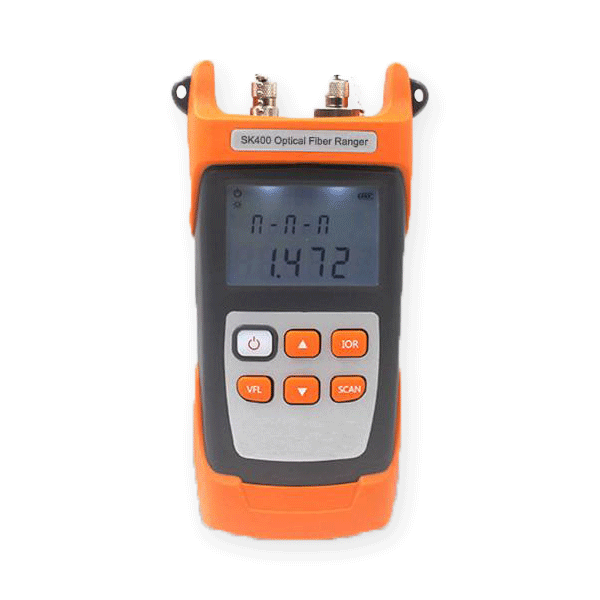

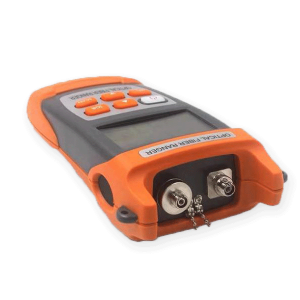

Saluki SK400 handheld optical fiber ranger is the lightest optical fiber length measuring instrument in the industry. It can quickly and accurately detect the location and type of optical fiber and cable fault points and test the distance between the two nodes of optical fiber.
Saluki SK400 Handheld Optical Fiber Ranger is the lightest optical fiber length measuring instrument in the industry. By adopting OTDR principle and integrating powerful analysis software, it can quickly and accurately detect the location and type of optical fiber and cable fault points and test the distance between the two nodes of optical fiber. The operation is easy to use, no complex parameter setting, friendly interface; Handheld design, small size and light weight, easy to carry, easy to maintain; Large capacity rechargeable lithium battery, energy saving design, long standby time. This instrument is suitable for fault location in engineering construction and maintenance based on FTTx and access network.
| Parameters | Specifications |
| Wavelength | 1550nm (optional 1310nm) |
| Fiber type | 9/125um single mode fiber |
| Connector type | FC/UPC (replaceable SC) |
| Sensor type | InGaAs |
| Maximum display distance | Reflection events: 60km |
| Non-reflection events: 20km | |
| Unit of measurement | m, km |
| Reflection event blind area | 10m |
| Distance accuracy (reflective events) | ± (2m + 2*10(-4)*distance) |
| Wavelength of visual fault locator (VFL) | 650nm |
| Power of visual fault locator (VFL) | >= 1mW |
| Power supply |
1500mAh rechargeable lithium battery |
| Working temperature | -10ºC to +40ºC |
| Storage temperature | -40ºC to +70ºC |
| Weight (excluding batteries) | 400g |
