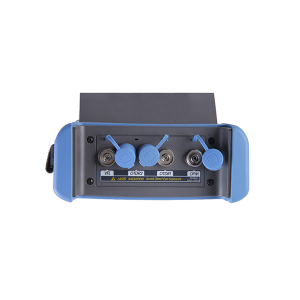

S2102 Optical Time Domain Reflectometers (OTDR/PON)

Saluki , Optical Test

Out of Stock

Key Features

Event dead zone: <0.8m
Dynamic range: up to 45dB
Unique PON testing capability
Wavelengths: 1300,1310,1490,1550,1625 and 1650nm
Abundant external interface
Automatic communication light check
High-speed auto measurement & analysis
Multiple wavelengths and model testing capabilities
0.05m high distance resolution,256k sampling point
Supporting Bellcore GR196 & SR-4731 file format

More information contact below :

marketing@cyber-tekno.com

021 5431 5536

0821 3973 6300

S2102 Series OTDR is ideal for access and FTTx network testing. It enables the user to test through 1x32 and even 1x64 splitters forPON testing. The S2102 OTDR can provide SMF and/or MMFtesting capabilities. It is designed to test up to four wavelengths in a single unit (ex. a combination of 1300, 1310, 1490, 1550, 1625 and 1650nm wavelengths). It can be used for long range to FTTx, CATV, LAN, Access and Metro networks.

Applications

Technical Specifications

Parameters	Specifications
Wavelength (nm)	1300, 1310, 1490, 1550, 1625 and 1650
Distance Range (km)	Singlemode: 0.4,0.8,1.6,3.2,6.4,16,32,64,128,256,512
Pulse Width (ns)	Singlemode: 5,10,30,80,160,320,640,1280,5120,10240,20480
Linearity ( dB/dB)	+/-0.05
Loss Threshold ( dB)	0.01
Loss Resolution ( dB)	0.001
Sampling Resolution (m)	0.05,0.1,0.2,0.5,1,2,4,8,16,32
Sampling Points	Up to 256k
Distance Uncertainty (m)	+/-(0.75m + sample space + measurement distance x 0.0025%)
Distance Unit	km, m, kft, ft
Memory Capacity	>= 800traces(build-in)
Group Refractive Index Setting	1.00000 to 2.00000 (0.00001steps)
VFL(Optional)	650nm+/-30nm, 2mW(typical); CW/1Hz
Optical Power Meter (Optional)	Wavelength range: 1200nm to 1650nm Measurement range: -60 to 0dBm Measurement accuracy: +/-5% (-25dBm, CW)
Interface	USB, Mini-USB, Ethernet, Earphone, SD
Optical connector	FC/UPC (ST/UPC or SC/UPC are available)
Environment	Operating: -10 °C to 50 °C (14 °F to 122 °F) Storage: -0 °C to 60 °C (-4 °F to 140 °F) Relative humidity : 0 % to 95 % non-condensing

Genaral Information

Display	640 x 480, 6.5 inch TFT-LCD (touch screen)
Power Supply	AC adapter: 100 to 240V (1.5A), 50/60Hz, DC:19V±2V(2A)
Battery	Built-in Lithium battery: 4400mAh
Operating time	>=8 hours (low brightness,exclude mwasuring)
Dimension	295W x 186H x 75D (mm)
Weight	2.5kg

Standard Configuration of S2102 OTDR

Model	Function	Item
S2102-2101	OTDR	Dynamic range is 42/40dB at 1310&1550nm
S2102-3103	OTDR	Dynamic range is 39/37/37dB at 1310/1550/1625nm
S2102-4103	OTDR	Dynamic range is 35/32/34/34dB at 1310/1490/1550/1650nm

Options of S2102 OTDR

Option No.	Item
S2102-01	Visual Fault Location (VFL)
S2102-02	Optical Power Meter (OPM)
