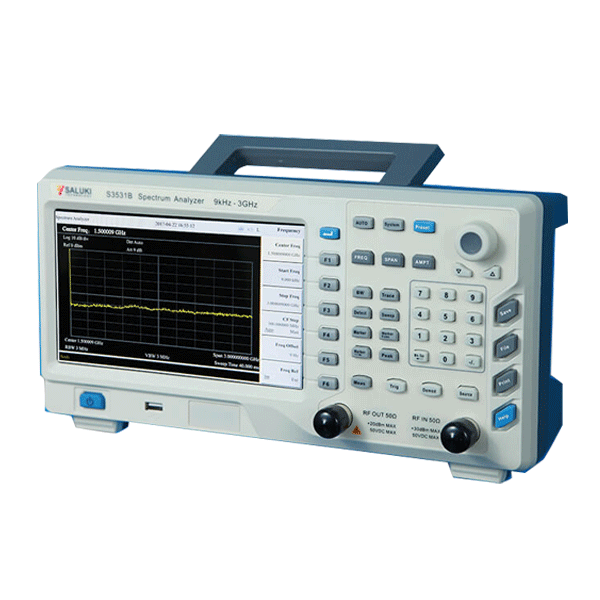

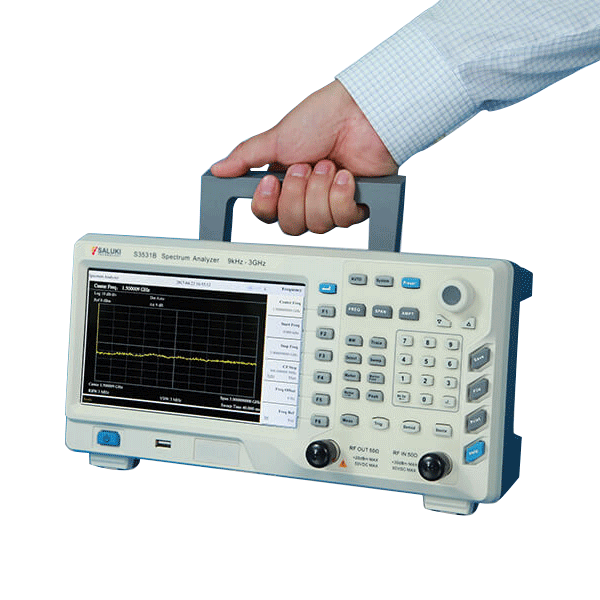

Saluki S3531 RF spectrum analyzer is designed based on the concept “Smaller, lighter, smarter" . S3531 take a small desktop space and easy to carry. Frequency of S3531A RF spectrum analyzer reaches 1.8GHz covers most of RF applications. S3531 is a good tool for test, maintenance and R&D. Tracking source and CW source provide ability to do complex measurements. S3531 is also suitable for education.
|
S3531A |
|||
|
Specification |
|||
|
Frequency range |
9 kHz - 1.8 GHz |
||
|
Resolution |
1 Hz |
||
|
RBW Range |
1 Hz - 3 MHz |
||
|
VBW Range |
10 Hz - 3 MHz |
||
|
DANL (CF = 1GHz, RBW=1Hz) |
<-135 dBm Preamp off |
||
|
SSB Phase Noise (CF=500 MHz, RBW=1 kHz) |
Carrier offset 30 kHz |
-90 dBc/Hz |
|
|
Carrier offset 100 kHz |
-100 dBc/Hz |
||
|
Carrier offset 1 MHz |
-115 dBc/Hz |
||
|
Maximum safe input level |
Average continuous power |
+23 dBm |
|
|
DC voltage |
50 Vdc maximum |
||
|
Input attenuator range |
0 - 30 dB, Steps of 3 dB |
||
|
TOI |
>30 MHz |
+13 dBm |
|
|
SHI |
+30 dBm |
||
|
Input related spurious |
<-60 dBc |
||
|
Inherent residual response |
<-90 dBm |
||
|
Test Port |
Type -N female (50Ω) |
||
|

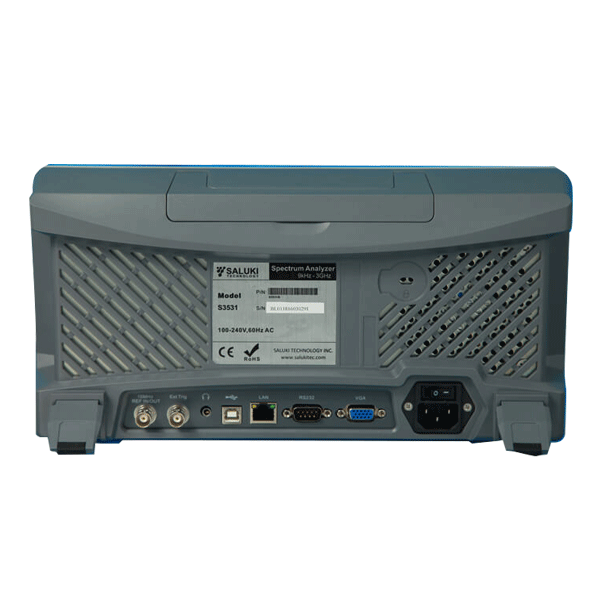

Communication Port |
USB, LAN |
||
|
Display |
8 inch TFT LCD |
|
Dimensions |
335(H)×162(W)×116(D)mm |
|
Weight |
4kg |
|
Option No. |
Item |
Description |
|
S3531-01 |
Field Strength Measurement | \ |
|
S3531-02 |
Near Field Probe Kit | \ |
| S3531-03 | Frequency Identity Module | \ |
| S3531-04 | Directional Antenna | Frequency range: 600MHz - 8GHz |
| S3531-05 | Omnidirectioanl Antenna | Frequency range: 300MHz - 7.5GHz |
| S3531-06 | SWR Bridge | Frequency range: 10MHz - 3.6GHz |
| S3531-07 | USB Power Sensor | Frequency range: 10MHz - 6GHz |
| S3531-08 | RF Demonstration Kit | \ |
