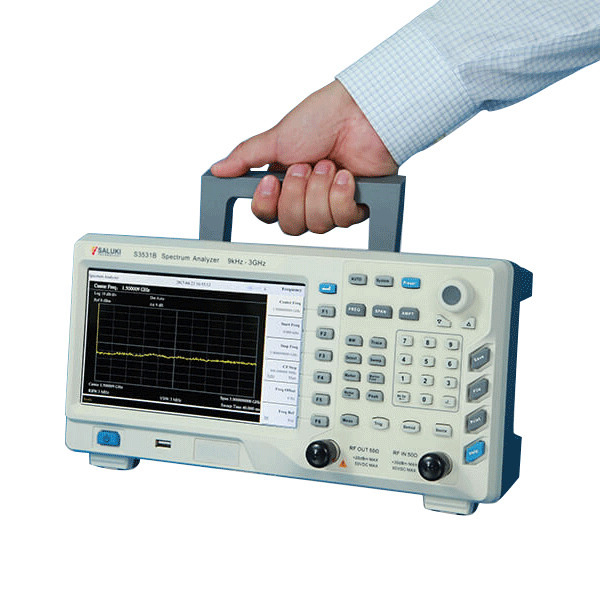

Saluki S3531 RF spectrum analyzer is designed based on the concept “Smaller, lighter, smarter" . S3531 take a small desktop space and easy to carry. Frequency of S3531 RF spectrum analyzer reaches 3GHz covers most of RF applications, such as mobile communication (GSM, CDMA, LTE and low frequency 5G), WIFI (2.4GHz), remote control etc. S3531 is a good tool for test, maintenance and R&D of these applications. Tracking source and CW source provide ability to do complex measurements. S3531 is also suitable for education.
|
S3531B |
|||
|
Specification |
|||
|
Frequency range |
9 kHz - 3 GHz |
||
|
Resolution |
1 Hz |
||
|
RBW Range |
10 Hz - 3 MHz |
||
|
VBW Range |
10 Hz - 3 MHz |
||
|
DANL (CF = 1GHz, RBW=1Hz) |
<-135 dBm Preamp off |
||
|
SSB Phase Noise (CF=500 MHz, RBW=1 kHz) |
Carrier offset 30 kHz |
-90 dBc/Hz |
|
|
Carrier offset 100 kHz |
-100 dBc/Hz |
||
|
Carrier offset 1 MHz |
-115 dBc/Hz |
||
|
Maximum safe input level |
Average continuous power |
+27 dBm |
|
|
DC voltage |
50 Vdc maximum |
||
|
Input attenuator range |
0 - 39 dB, Steps of 1 dB |
||
|
TOI |
>30 MHz |
+13 dBm |
|
|
SHI |
+30 dBm |
||
|
Input related spurious |
<-60 dBc |
||
|
Inherent residual response |
<-85 dBm |
||
|
Test Port |
Type -N female(50Ω) |
||
|
Communication Port |
USB, LAN |
||
|
Display |
8 inch TFT LCD |
|
Dimensions |
335(H)×162(W)×116(D)mm |
|
Weight |
4kg |
|
Option No. |
Item |
Description |
|
S3531-01 |
Field Strength Measurement | \ |
|
S3531-02 |
Near Field Probe Kit | \ |
| S3531-03 | Frequency Identity Module | \ |
| S3531-04 | Directional Antenna | Frequency range: 600MHz - 8GHz |
| S3531-05 | Omnidirectioanl Antenna | Frequency range: 300MHz - 7.5GHz |
| S3531-06 | SWR Bridge | Frequency range: 10MHz - 3.6GHz |
| S3531-07 | USB Power Sensor | Frequency range: 10MHz - 6GHz |
| S3531-08 | RF Demonstration Kit | \ |
