Key Features
Wide frequency range: 3Hz - 67GHz
Optional Extenders extends frequency up to 325 GHz
Maximum analysis bandwidth up to 550MHz
Comprehensive spectrum analysis
FFT sweep supported
Multi-domain correlation analysis and signal playback
Support analogue and digital signal output interface

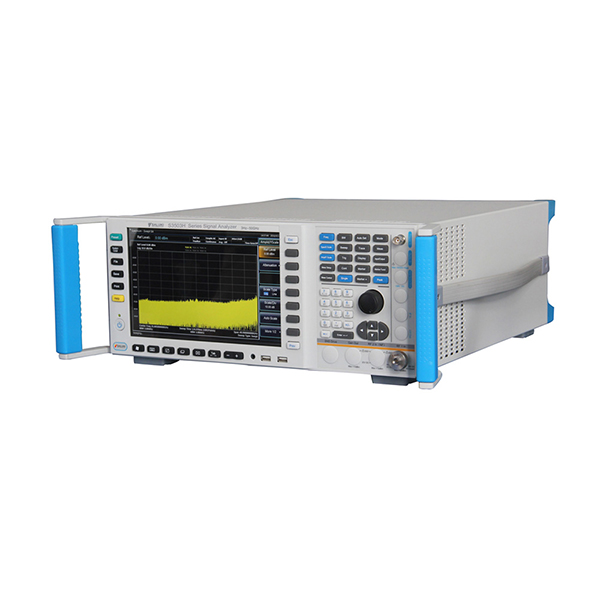

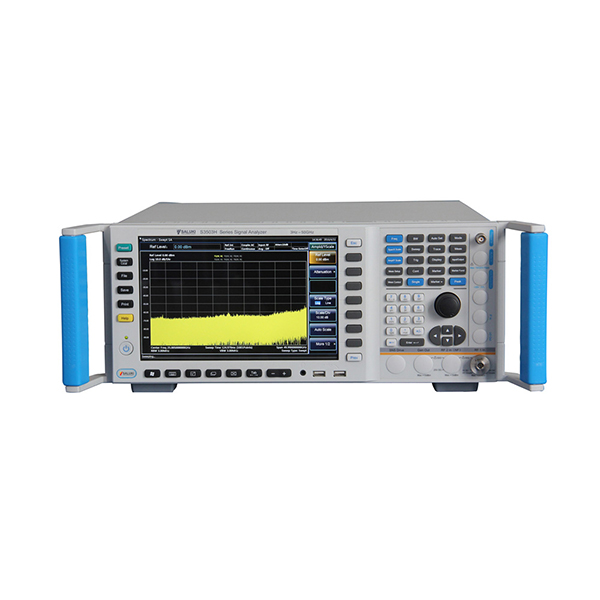

The S3503 Series Signal / Spectrum Analyzer is featured with excellent dynamic range, low phase noise, precision amplitude and high testing speeds.
Main Functions
(1) Transient analysis and signal playback
(2) Vector signal analysis
(3) Real-time spectrum analysis
(4) Noise figure analysis
(5) Pulse signal analysis
(6) Phase noise measurement
(7) Audio analysis
(8) Analog demodulation
Applications
| Test and Debugging of Transmitters and Receivers
| Configuration of intricate testing diagnostic system
| Comprehensive Performance Evaluation of Electronic Systems including Radar and Communication
|
Frequency |
||
|
Frequency Range |
A: 3Hz - 4GHz |
B: 3Hz - 9GHz |
|
C: 3Hz - 13.2 GHz |
D: 3Hz - 18 GHz |
|
|
E: 3Hz - 26.5 GHz |
F: 3Hz - 40 GHz |
|
|
G: 3Hz - 45 GHz |
H: 3Hz - 50 GHz |
|
| L: 3Hz - 67GHz | ||
|
Bandwidth |
||
|
Resolution Bandwidth |
1Hz-3MHz (Step by 1, 2 ,3 ,5) |
|
|
Video Bandwidth |
1 Hz-3 MHz (Step by 1, 2 ,3 ,5) |
|
|
Signal Analysis Bandwidth |
10 Hz - 10 MHz (Standard) 550 MHz (Optional) |
|
|
Phase Noise |
||
|
@1 GHz, 100 Hz offset |
< -96 dBc/Hz |
|
|
@1 GHz, 1 kHz offset |
< -115 dBc/Hz |
|
|
@1 GHz, 10k Hz offset |
< -125 dBc/Hz |
|
|
@1 GHz, 100 kHz offset |
< -125 dBc/Hz |
|
|
Min Displayed Average Noise Level (DANL) |
||
|
@1 GHz |
-153 dBc/Hz |
|
|
Scan Time Range |
||
|
Bandwidth >10 Hz |
1 ms - 4000 s |
|
|
Bandwidth 0 Hz |
1 μs - 6000 s |
|
|
Residual Response |
||
|
200 kHz-9 GHz |
-100 dBm |
|
|
Dimension (W×H×D) |
510x190x534 mm |
|
426x177x460 mm |
|
|
Max. Weight |
25 kg |
|
Power Supply |
AC 220 V / 240 V, 50 / 60 Hz |
| Option No. | Item |
|

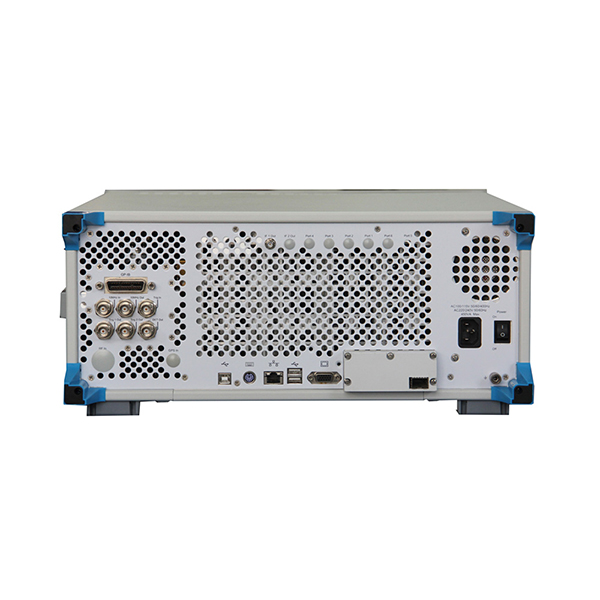

S3503-H01 |
Rear Panel RF Input |
|
S3503-H02 |
High IF Output |
|
S3503-H03 |
IF Output |
|
S3503-H04A |
Reconstruct IF/ Video Signal Output |
|
S3503-H04B |
Wide Band Reconstruct IF/ Video Signal Output |
|
S3503-H08 |
Wide Log Detect Output |
|
S3503-H12A |
40MHz Bandwidth Digital Interface |
|
S3503-H12B |
200MHz Bandwidth Digital Interface |
|
S3503-H15 |
(+)24V DC Power Supply |
|
S3503-H22A |
S4711 Data Recorder |
|
S3503-H22B |
S4712 Data Recorder |
|
S3503-H33 |
Electronic Attenuator |
|
S3503-H34-04 |
Low-Noise Preamplifier |
|
S3503-H34-09 |
Low-Noise Preamplifier |
|
S3503-H34-13 |
Low-Noise Preamplifier |
|
S3503-H34-18 |
Low-Noise Preamplifier |
|
S3503-H34-26 |
Low-Noise Preamplifier |
|
S3503-H34-40 |
Low-Noise Preamplifier |
|
S3503-H34-45 |
Low-Noise Preamplifier |
|
S3503-H34-50 |
Low-Noise Preamplifier |
|
S3503-H36 |
Pre-selector Bypass |
|
S3503-H38A |
40MHz Analysis Bandwidth |
|
S3503-H38B |
200MHz Analysis Bandwidth |
| S3503-H38C | 550MHz Analysis Bandwidth |
|
S3503-H39 |
Audio Analysis |
|
S3503-H40 |
External Mixer |
| S3503-H41 | Realtime Analysis |
| S3503-H48 | Noise Figure Measurement |
| S3503-H97 | Mounting Suit |
|
S3503-H99 |
Aluminum Alloy Aviation Case |
| Option No. | Item |
|
S3503-S04 |
Phase Noise Measurement |
|
S3503-S09 |
Analogous Demodulation Analyzer |
|
S3503-S10 |
Transient Analyzer |
| S3503-S12 | Vector Signal Analyzer |
|
S3503-S13 |
Pulse Signal Analyzer |
