UNI-T UTG9000T Series Waveform Generator

UNI-T , Signal Sources

Out of Stock

Standard four channel with separate output channel mode
Nine basic waves: sine wave, square wave, ramp wave, pulse wave, harmonic wave, noise,
PRBS ( pseudo random binary sequence), DC, arbitrary wave
The maximum sampling rate 2.5GSa/s, the vertical resolution 16bits/14bits
Adjustable noise bandwidth
Sine wave output: 600MHz/500MHz/350MHz, full band: 1pHz resolution
Square wave output: 200MHz/160MHz/120MHz, the minimum edge time: within 1.5ns, adjustable duty ratio
Pulse wave output: 200MHz/160MHz/120MHz, wide dynamic range high precise adjustable rising/ falling edge time, adjustable duty ratio
It can output phase and amplitude, independent and adjustable 2~16 harmonic wave
The maximum output swing: 20Vpp
It can output arbitrary wave 8pts~64Mpts, support point-by-point. More than 200 types of nonvolatile digital arbitrary wave storage
It can store 16GB (optional) or 20MB arbitrary file (.bsvor.csv) , the instrument status file
It can read arbitrary wave file (.bsv or.csv) and the instrument file storage in USB
Abundant modulation types: AM, FM, PM, DSB-AM, QAM, ASK, FSK, 3FSK, 4FSK, PSK, BPSK, QPSK, OSK, PWM, SUM
Linear, logarithmic, list frequency, stepping sweep
Support frequency sweep and burst ( pulse string) output
Digital protocol output: SPU IIC - UART
SNR (signal to noise ratio) one-click output
Four channels can be internal/external modulating, internal/external/manual respectively or at the same time
Flardware frequency counter: 800MHz, AC/DC coupling
Powerful upper-computer software and arbitrary editor

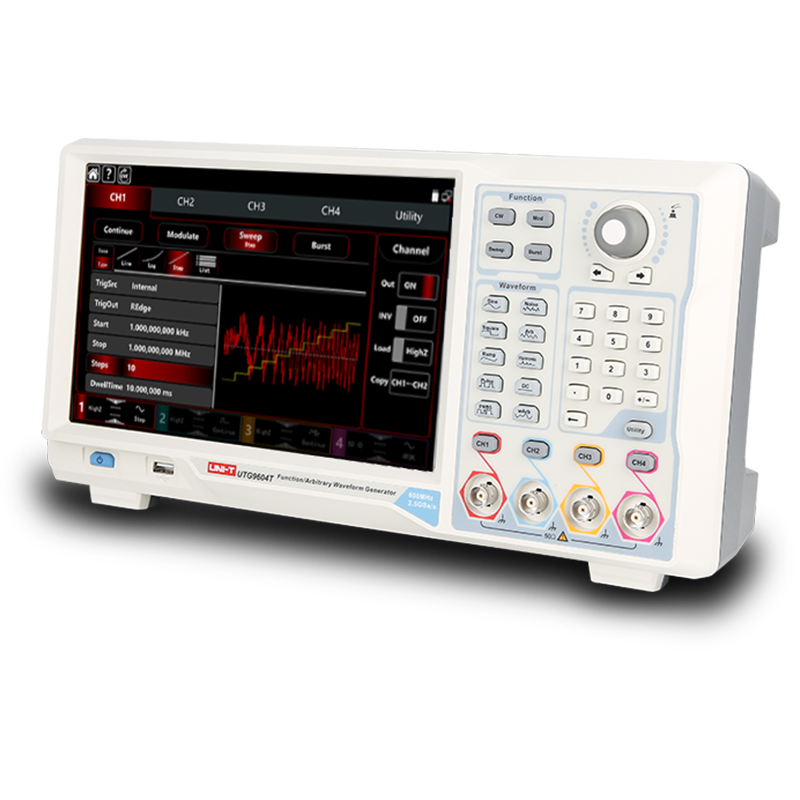

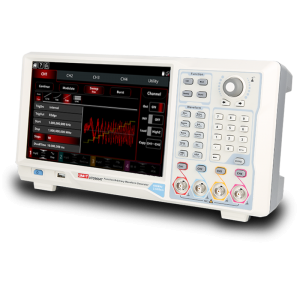

10.1-inch capacitive touch screen, 1280*800 resolution

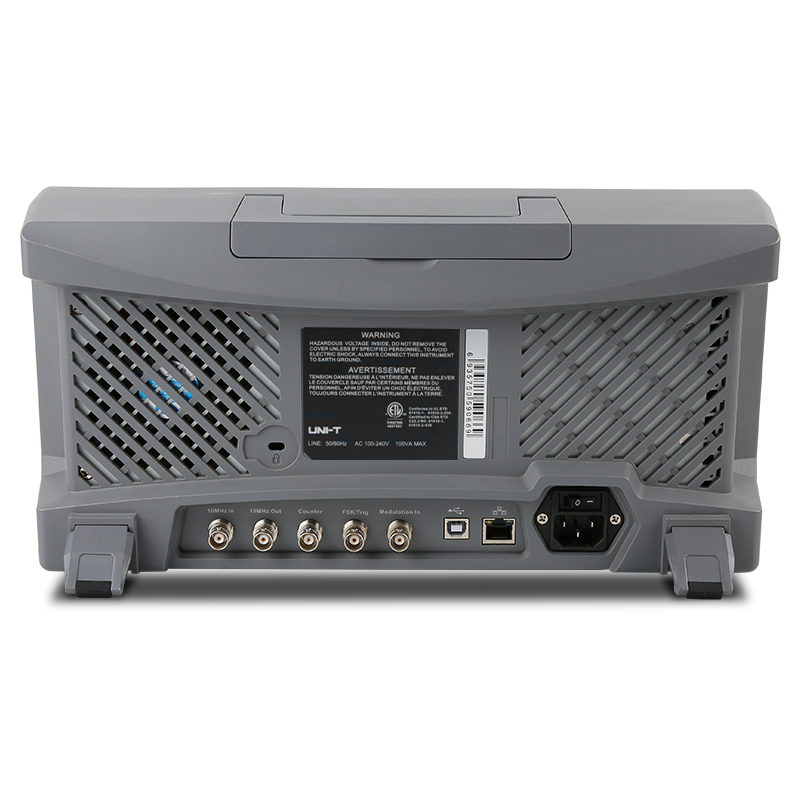

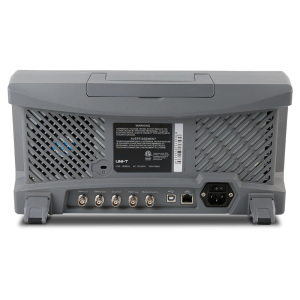

Standard configuration interface: USB Host, USB Device, LAN, independent input and output of 10MHz clock source
Usability multifunction knob and numeric keypad

More information contact below :

marketing@cyber-tekno.com

021 5431 5536

0821 3973 6300

Ordering Info

UTG9354T

350 MHz 2.5 GSa/s 4 Channels

UTG9504T

500 MHz 2.5 GSa/s 4 Channels

UTG9604T

600 MHz 2.5 GSa/s 4 Channels

The UTG9000T series is a 4 channels waveform generator and able to provide more multi-function such as Noise,IQ signals and PRBS etc. The series MAX Frequency output is 600MHz and the MAX sampling rate is up to 2.5GSa/s.It generates accurate & stable waveform which adopts Direct Digital Synthesizer (DDS) technology. The Series provides high performance and multiple functions with high-resolution(1μHz). With a super screen10.1inches & rational layout is to enhance comfort level and improve users work UTG9604T efficiency.

Model \ Parameter	UTG9604T		UTG9504T		UTG9354T
Channel	CH1/CH2	CH3/CH4	CH1/CH2	CH3/CH4	CH1/CH2	CH3/CH4
Maximum frequency	600MHz	200MHz	500MHz	200MHz	350MHz	160MHz
Sampling rate	2.5GSa/s	625MSa/s	2.5GSa/s	625MSa/s	2.5GSa/s	625MSa/s
Vertical resolution	16bits	16bits	14bits	16bits	14bits	16bits
Arbitrary wave depth	8pts-64Mpts	8kpts	8pts-64Mpts	8kpts	8pts-64Mpts	8kpts
Waveform	Sine, square, ramp, pulse, harmonic, noise, PRBS, DC, arbitrary wave
Operating mode	Continue, Modulate, Sweep, Burst, Frequency counter, Protocol
Modulation type	AM, FM, PM, OS BAM, QAM, ASK, FSK, 3FSK, 4FSK, PSK, BPSK, QPSK, OSK, PWM, SUM
