- 80MHz/120MHz/160MHz sine waveform output,
- 1 uHz full-band resolution 30MHz/40MHz/50MHz pulse waveform,
- adjustable rise/fall time >500MSa/s sampling rate,
- 16 bits vertical resolution
- Standard dual channels, supporting stand-alone or channel-coupling output mode >32Mpts arbitrary waveform length,
- 7GB non-volatile arbitrary waveforms Versatile modulation options: AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, PWM, SUM, QAM
- Frequency counter range: 100mHz - 800MHZ 8 inches TFT LCD,WVGA (800x480)
- Standard Ports: USB Host, USB Device, LAN, 10MHz Input, 10MHz Output, Frequency Counter, FSK Trig, Modulation in

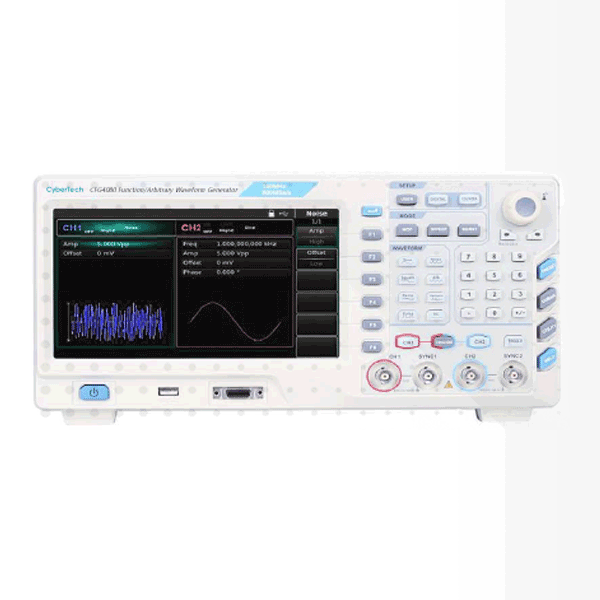

The CFG-4000 Series waveform generators are applied to a wide range of application domain, integrating multiple waveforms for Function Generation, Arbitrary Waveform Generation, Pulse Generation, Harmonic Generation, Analog/Digital Modulation source.
The CFG4000 Series is a waveform generator with high sampling rate up to 500MS/s, MAX waveform length up to 32Mpt. To generate stable, precise, low distortion signals. The CFG4000 Series adopts Direct Digital Synthesizer (DDS) technology. User-friendly interface design with high resolution 8 inches display screen and rational panel layout to improve operational efficiency
