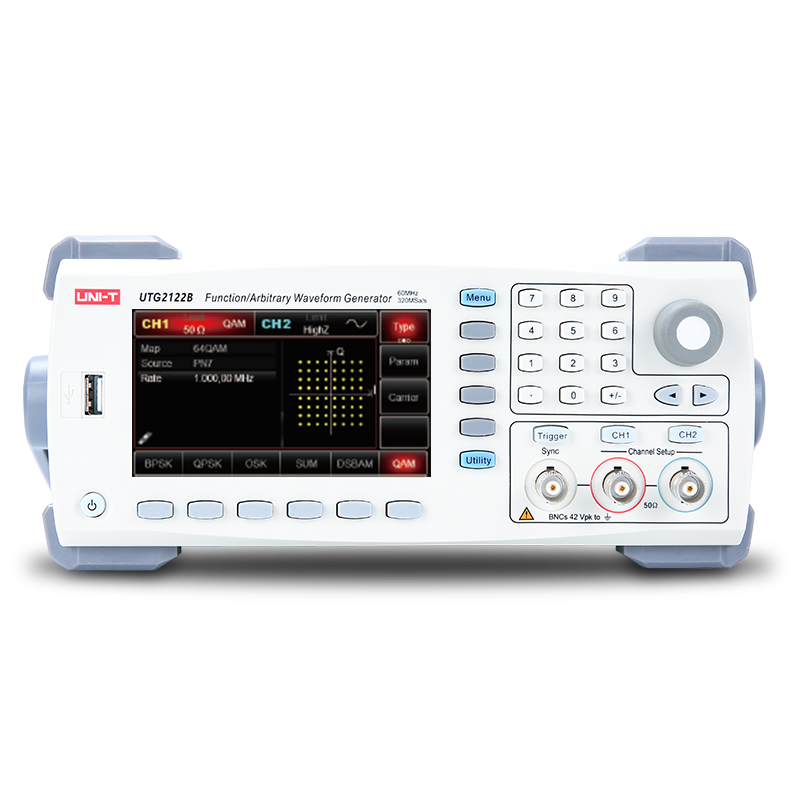

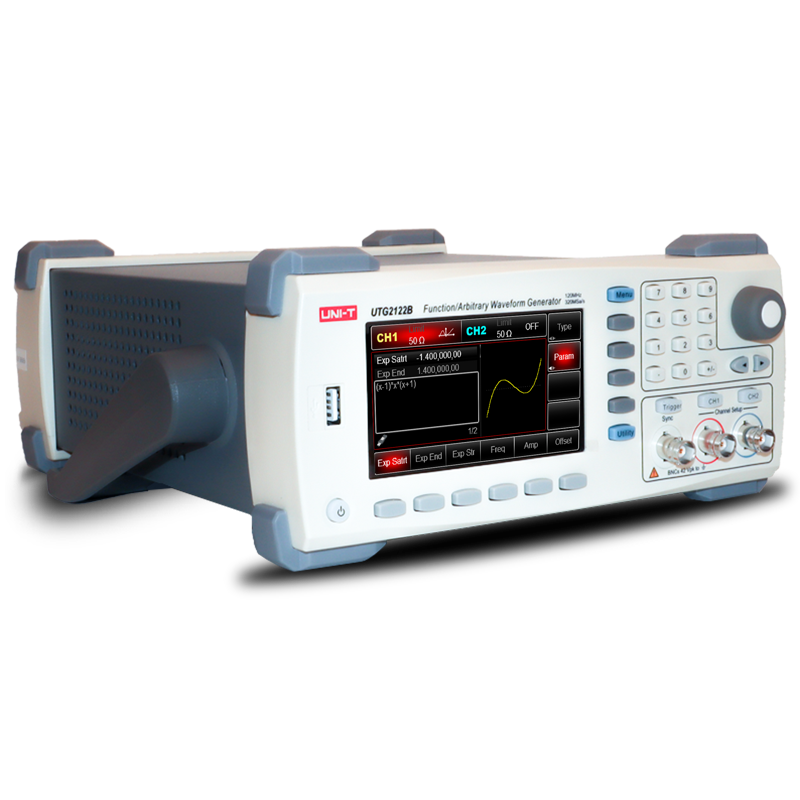

UNI-T UTG2000B Series Waveform Generator

UNI-T UTG2000B Series Waveform Generator

UNI-T , Signal Sources
  • 60/80/120MH sine waveform output, 1 µHz full-band resolution;
  • 320MSa/s sample rate, 16 bits vertical resolution;
  • Unique Expression Output Function
  • Standard dual channels, supporting stand-alone or channel-coupling output mode;
  • 16Mpts arbitrary waveform length
  • Versatile modulation choices: AM, FM, PM, PWM, ASK, FSK, PSK, BPSK, QPSK, OSK, DSB-AM, SUM, QAM
  • 4.3 Inches TFT LCD,WVGA (800x480);
  • Standard Ports: USB Host, USB Device, LAN

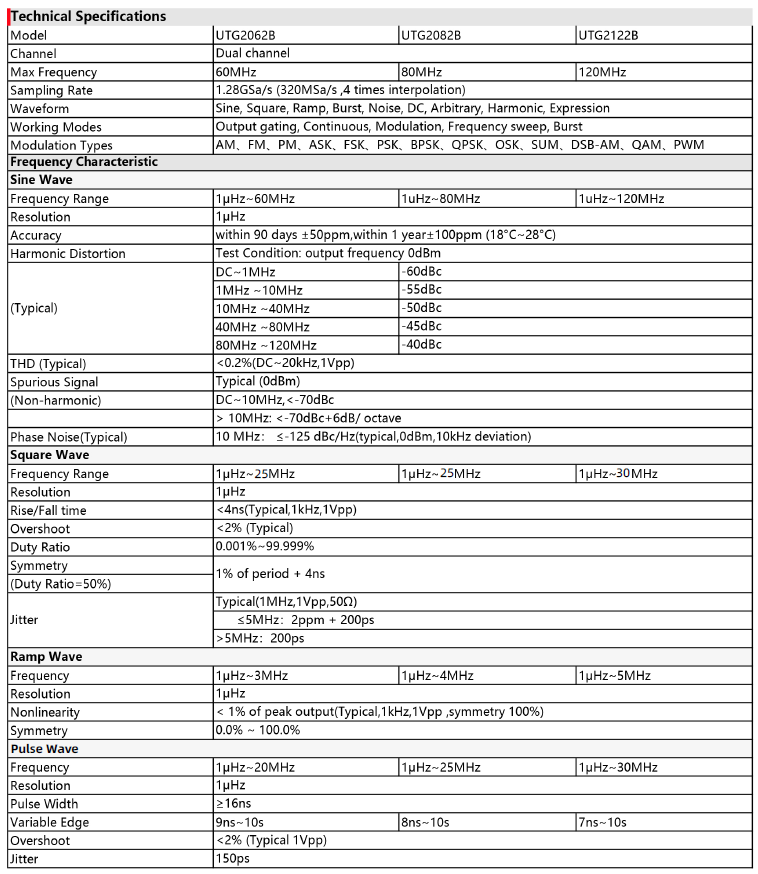

Ordering Info

UTG2122B
120 MHz 320 MSa/s 16-bit 2 Channels
UTG2082B
80 MHz 320 MSa/s 16-bit 2 Channels
UTG2062B
60 MHz 320 MSa/s 16-bit 2 Channels

UTG2000B series can produce high precision, stable, pure and low distortion signals; provide high frequency square wave with quick rise and fall edges. Users can improve their working efficiency by using the multifunctional instrument of easy operated interface, competitive specifications and humanized graphical display.
