- 3 independent, fully programmable and electrically isolated outputs Series or parallel operation
- Display Voltage and Current for of all 3 channels simultaneously
- Very compact foot print ( 2U x 1/2)
- Bright and easy to read display (VFD technology) High resolution, accuracy and stability
- Low ripple and low noise
- Built-in USB/RS232 communication port
- 36 memory locations for instrument state storage & recall
- Convenient data entry via knob or numerical key pad Rack mount kit available
- Timer function(0.1-99999.9s)

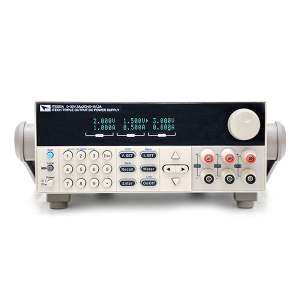

IT-6322A triple output power supply can adjust the stepping by the left/right arrow button, very convenient for your operation. IT-6322A has a remote measurement function, it can ensure your testing is accurate. And built-in RS232, USB interface, and each channel can be set to serial/ parallel/ track mode, it can bring a multipurpose testing solution to you.
Tracking mode
Select tracking mode, CH1 and CH2, CH2 and CH3, or all three channels to be set as tracking mode, if any one channel parameter changed, corresponding that the other channels will also be changed in proportion.
For example, set up the voltage and current of CH1 and CH2 to be CH1:4V, 1A; CH2:8V, 2A. Set CH1 and CH2 in tracking mode, in output off and Meter state, VFD will be shown as below
| Outputs | Triple |
|---|---|
| Voltage Output 1 | Variable |
| Max Voltage Output 1 | 30 V |
| Programmable | Yes |
| Current Output 1 | Variable |
| Max Current Output 1 | 3 A |
| Voltage Output 2 | Variable |
| Max Voltage Output 2 | 30 V |
| Current Output 2 | Variable |
| Max Current Output 2 | 3 A |
| Voltage Output 3 | Variable |
| Max Voltage Output 3 | 5 V |
| Current Output 3 | Variable |
| Max Current Output 3 | 3 A |
| Meter Type | Digital |
| Switching | No |
| Linear/Switching | Linear |
| Max Display Resolution Current | 1 mA |
| Max Display Resolution Voltage | 1 mV |
| Constant current/voltage | Yes |
| Remote Sensing | Yes |
