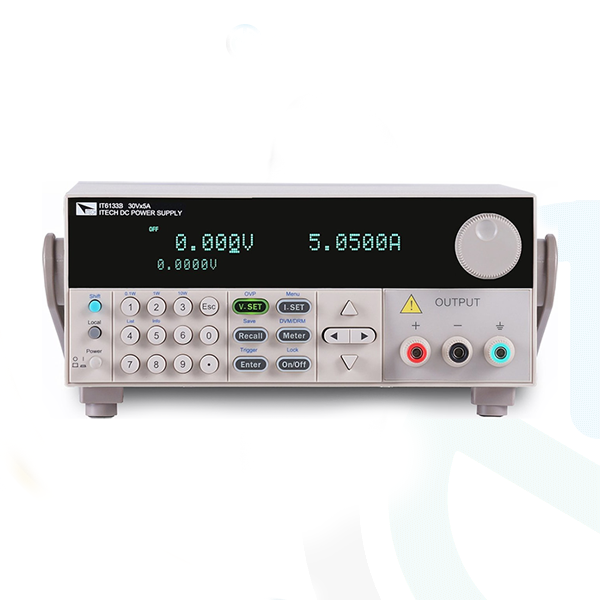

IT6133B (86 ~ 1200W) high speed high precision programmable DC power supply is with ultra high voltage rising time, the fastestfull load up to 500us, resolution up to 0.1mV / 0.01mA, the latest output waveform priority mode allows rising waveform ofvoltage or current is with high-speed and no overshoot, which is widely used in power modules and other high-precision test occasions. IT6100B hasbuilt-in standard USB / RS232 communication interface and the panel supports List programming, which canprovide multi-purpose solution according to customer design and testing demands, easy to use.
| Outputs | Single |
|---|---|
| Voltage Output 1 | Variable |
| Max Voltage Output 1 | 60 V |
| Programmable | Yes |
| Current Output 1 | Variable |
| Max Current Output 1 | 2.5 A |
| Meter Type | Digital |
| Switching | No |
| Linear/Switching | Linear |
| Max Display Resolution Current | 0.1 mA |
| Max Display Resolution Voltage | 1 mV |
| Constant current/voltage | Yes |
| Remote Sensing | Yes |
Test Equipment General Attributes |
|
| Unique Features | Very high accuracy and resolution: 0.1 mV, 0.01 mA Low ripple and low noise LED keyboard Low ripple and low noise Fast rising speed?<20ms? 5 2/1 digit digital voltage meter and mΩ meter Convenient data entry via knob or numerical key pad OTP, OVP and current limitation protection Bright and easy to read display (VFD technology) Remote Sense Function Timer function (0.01-60000.0s) List Mode: Generate, store and execute test sequences without the need for an external computer Standard USB/RS232 communication interface |
| Warranty | 2 YEARS |
| Safety Approval | CE |
| Interfaces I/O | RS-232, USB |
| Product Weight | 15.4 LBS |
| Product Height | 3.5 IN |
| Product Length | 14 IN |
| Product Width | 8.4 IN |
| Shipping Weight | 21.6 LBS |
| Data Logging | Yes |
| Calibration Included | Factory Calibration |
| Power Supply Voltage | 120V/220V Universal |
| Country of Origin | China |
| Shipping Height | 11.6 IN |
| UPC | 6970341180928 |
| Shipping Length | 20.1 IN |
| Shipping Width | 15.9 IN |
