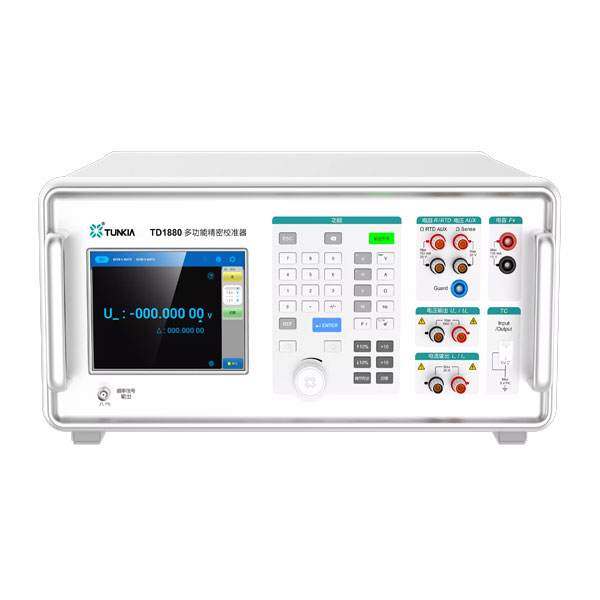

TD1880 is a multi-function calibrator with wide range and high accuracy, integrates AC/DC voltage and current standard source, can output excellent DC\AC voltage, DC\AC current, DC\AC power, phase, frequency, and analog resistance and capacitance etc. It's applied for calibrating 6.5 digits or less digital multimeters.
1. Summary
TD1880 is a multi-function calibrator with wide range and high accuracy, integrates AC/DC voltage and current standard source, can output excellent DC\AC voltage, DC\AC current, DC\AC power, phase, frequency, and analog resistance and capacitance etc. It’s applied for calibrating 6.5 digits or less digital multimeters.
2. Features
DC voltage output: ± (0~1020 V)
DC current output: ± (0 ~ 20.5 A)
AC voltage output: 1mV ~ 1020 V
AC current output: 29 μA ~ 20.5 A
Sinusoidal wave frequency: 10 Hz ~ 500 kHz
Simulated DC resistance: 0 Ω ~ 1100 MΩ
2 MHz square wave frequency output
Phase output
AC/DC power output
Simulated capacitance(optional)
8 kinds of thermocouple output and measurement (option)
6 kinds of thermal resistance output (option)
Clamp meter calibration (optional)

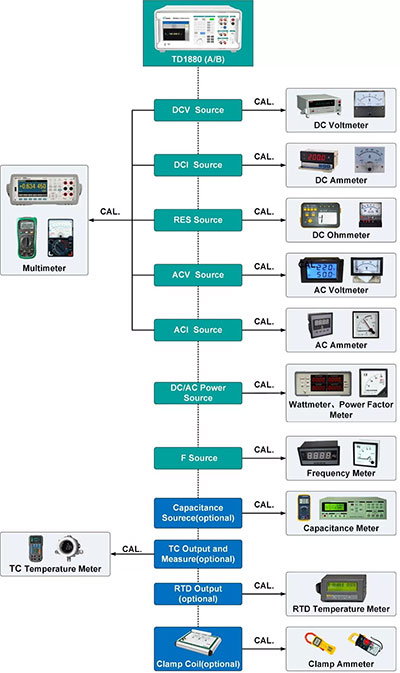

3. Application
