TD1000 is a calibration apparatus for multifunctional clamp meters, which integrates functions such as AC/DC high current standard source, AC/DC voltage standard source, and resistance standard source, which can meet the calibration needs of multifunctional clamp meters with different accuracy levels.
1. Summary
TD1000 is a calibration apparatus for multifunctional clamp meters, which integrates functions such as AC/DC high current standard source, AC/DC voltage standard source, and resistance standard source, which can meet the calibration needs of multifunctional clamp meters with different accuracy levels.
2. Features
• Accuracy: Class 0.05, Class 0.1 available
• AC current output: 20 mA ~ 1100 A
• AC voltage output: 1 V ~ 825 V
• DC current output(optional): 20 mA ~ 22A
• DC voltage output(optional): 20 mV ~ 1100V
• DC resistance output: 10 Ω ~ 11 MΩ
• Two thickness copper rings
• Remote adjustment(optional)

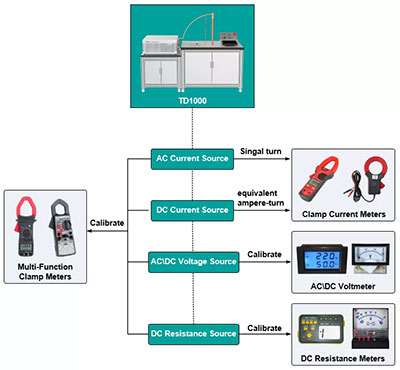

3. Application
Specifications
6.1 AC Current
|
Range |
Resolution |
Output Range |
Frequency |
Max Compliance Voltage (rms) |
|
200 mA |
1 μA |
10.000 mA ~ 210.000 mA |
45 Hz ~ 65 Hz |
50 V |
|
1 A |
10 μA |
0.10000 A ~ 1.10000 A |
45 Hz ~ 65 Hz |
15 V |
|
5 A |
10 μA |
0.50000 A ~ 5.50000 A |
45 Hz ~ 65 Hz |
8 V |
|
20 A |
100 μA |
2.0000 A ~ 22.0000 A |
45 Hz ~ 65 Hz |
2 V |
|
50 A |
100 μA |
5.0000 A ~ 55.0000 A |
45 Hz ~ 65 Hz |
1 V |
|
100 A |
1 mA |
10.000 A ~ 110.000 A |
45 Hz ~ 65 Hz |
0.7 V |
|
250 A |
1 mA |
25.000 A ~ 275.000 A |
45 Hz ~ 65 Hz |
0.7 V |
|
500 A |
1 mA |
50.000 A ~ 550.000 A |
45 Hz ~ 65 Hz |
0.7 V |
|
1000 A |
10 mA |
100.00 A ~ 1100.00 A |
45 Hz ~ 65 Hz |
0.7 V |
|
Range
|
Stability (± %/min) |
Accuracy ± (ppm*RD+ppm*RG) |
Distortion (%)
|
||
|
Class 0.05 |
Class 0.1 |
Class 0.05 |
Class 0.1 |
||
|
200 mA |
0.01 |
0.02 |
250 + 150 |
600 + 400 |
<0.5 |
|
1 A |
0.01 |
0.02 |
250 + 150 |
600 + 400 |
< 0.5 |
|
5 A |
0.01 |
0.02 |
250 + 150 |
600 + 400 |
< 0.5 |
|
20 A |
0.01 |
0.02 |
250 + 150 |
600 + 400 |
< 0.5 |
|
50 A |
0.01 |
0.02 |
250 + 150 |
600 + 400 |
< 0.5 |
|
100 A |
0.01 |
0.02 |
250 + 150 |
600 + 400 |
< 0.5 |
|
250 A |
0.01 |
0.02 |
250 + 150 |
600 + 400 |
< 0.5 |
|
500 A |
0.01 |
0.02 |
250 + 150 |
600 + 400 |
< 0.5 |
|
1000 A |
0.01 |
0.02 |
250 + 150 |
600 + 400 |
< 0.5 |
| Note[1]: RD=Reading?RG=Range, unless otherwise noted? | |||||
• Output range: 20 mA ~ 1100 A
• Adjustment fineness: 0.002%*RG?6 digits display
• Protections: open-circuit protection, overload protection, over-heat protection
6.2 AC Voltage
|
Range |
Resolution |
Output Range |
Frequency |
Max Burden(rms) |
|
10 V |
100 μV |
1.0000 V ~ 11.0000 V |
45 Hz ~ 65 Hz |
800 mA |
|
30 V |
100 μV |
3.0000 V ~ 33.0000 V |
45 Hz ~ 65 Hz |
700 mA |
|
100 V |
1 mV |
10.000 V ~ 110.000 V |
45 Hz ~ 65 Hz |
200 mA |
|
300 V |
1 mV |
30.000 V ~ 330.000 V |
45 Hz ~ 65 Hz |
70 mA |
|
750 V |
1 mV |
75.000 V ~ 825.000 V |
45 Hz ~ 65 Hz |
30 mA |
|
Range
|
Stability (±/min) |
Accuracy ± (ppm*RD+ppm*RG) |
Distortion (%)
|
||
|
Class 0.05 |
Class 0.1 |
Class 0.05 |
Class 0.1 |
||
|
10 V |
0.01 |
0.02 |
300 + 200 |
600 + 400 |
<0.5 |
|
30 V |
0.01 |
0.02 |
300 + 200 |
600 + 400 |
< 0.5 |
|
100 V |
0.01 |
0.02 |
300 + 200 |
600 + 400 |
< 0.5 |
|
300 V |
0.01 |
0.02 |
300 + 200 |
600 + 400 |
< 0.5 |
|
750 V |
0.01 |
0.02 |
300 + 200 |
600 + 400 |
< 0.5 |
• Output r ange: 1 V ~ 825 V
• Adjustment fineness: 0.002%*RG
• 6 digits display
• Protections: short-circuit protection, overload protection, over-heat protection
6.3 DC Current(optional)
|
Range |
Resolution |
Output Range |
Max Compliance Voltage |
|
200 mA |
1 μA |
20.000 mA ~ 220.000 mA |
10 V |
|
1 A |
10 μA |
0.10000 A ~ 1.10000 A |
10 V |
|
5 A |
10 μA |
0.50000 A ~ 5.50000 A |
10 V |
|
20 A |
100 μA |
2.0000 A ~ 22.0000 A |
10 V |
|
Range
|
Stability (± %/min) |
Accuracy ± (ppm*RD+ppm*RG) [2] |
Ripple Factor (%)
|
||
|
Class 0.05 |
Class 0.1 |
Class 0.05 |
Class 0.1 |
||
|
200 mA |
0.01 |
0.02 |
250 + 150 |
600 + 400 |
<0.5 |
|
1 A |
0.01 |
0.02 |
250 + 150 |
600 + 400 |
<0.5 |
|
5 A |
0.01 |
0.02 |
250 + 150 |
600 + 400 |
<0.5 |
|
20 A |
0.01 |
0.02 |
250 + 150 |
600 + 400 |
<0.5 |
• Output range: 20 mA ~ 22 A?1000 At?
• Adjustment fineness: 0.002%*RG
• Display digits: 6 digits display
• Protections: open-circuit protection, overload protection, over-heat protection
6.4 DC Voltage(optional)
|
Range |
Resolution |
Output Range |
Max Burden |
|
200 mV |
1 μV |
20.000 mV ~ 220.000 mV |
100 mA |
|
1 V |
10 μV |
0.10000 V ~ 1.00000 V |
100 mA |
|
10 V |
100 μV |
1.0000 V ~ 11.0000 V |
100 mA |
|
30 V |
100 μV |
3.0000 V ~ 33.0000 V |
800 mA |
|
100 V |
1 mV |
10.000 V ~ 110.000 V |
200 mA |
|
300 V |
1 mV |
30.000 V ~ 330.000 V |
70 mA |
|
600 V |
1 mV |
60.000 V ~ 660.000 V |
25 mA |
|
1000 V |
10 mV |
100.00 V ~ 1100.00 V |
20 mA |
|
Range
|
Stability (± %/min) |
Accuracy ± (ppm*RD+ppm*RG) |
Ripple Factor (%)
|
||
|
Class 0.05 |
Class 0.1 |
Class 0.05 |
Class 0.1 |
||
|
200 mV |
0.01 |
0.02 |
300 + 200 |
600 + 400 |
<0.5 |
|
1 V |
0.01 |
0.02 |
300 + 200 |
600 + 400 |
< 0.5 |
|
10 V |
0.01 |
0.02 |
300 + 200 |
600 + 400 |
< 0.5 |
|
30 V |
0.01 |
0.02 |
300 + 200 |
600 + 400 |
< 0.5 |
|
100 V |
0.01 |
0.02 |
300 + 200 |
600 + 400 |
< 0.5 |
|
300 V |
0.01 |
0.02 |
300 + 200 |
600 + 400 |
< 0.5 |
|
600 V |
0.01 |
0.02 |
300 + 200 |
600 + 400 |
< 0.5 |
|
1000 V |
0.01 |
0.02 |
300 + 200 |
600 + 400 |
< 0.5 |
• Output range: 20 mV ~ 1100 V
• Adjustment fineness: 0.002%*RG
• 6 digits display
• Protections: short-circuit protection, overload protection, over-heat protection
6.5 DC Resistance
|
Range |
Resolution |
Output Range |
Accuracy ± (ppm*RD+ppm*RG) |
Allowable Current |
|
100 Ω |
1 mΩ |
10.000 Ω ~ 110.000 Ω |
600 + 400 |
1 mA ~ 15 mA |
|
1 kΩ |
10 mΩ |
0.10000 kΩ ~ 1.10000 kΩ |
600 + 400 |
100 μA ~ 1.5 mA |
|
10 kΩ |
100 mΩ |
1.0000 kΩ ~ 11.0000 kΩ |
600 + 400 |
10 μA ~ 150 μA |
|
100 kΩ |
1 Ω |
10.000 kΩ ~ 110.000 kΩ |
600 + 400 |
10 μA ~ 150 μA |
|
1 MΩ |
10 Ω |
0.10000 MΩ ~ 1.10000 MΩ |
600 + 400 |
1 μA ~ 15 μA |
|
10 MΩ |
100 Ω |
1.0000 MΩ ~ 11.0000 MΩ |
600 + 400 |
100 nA ~ 2 nA |
• Output range: 10 Ω ~ 11 MΩ
• Adjustment fineness: 0.002%*RG
• 6 digits display
7. General Specifications
|
Power supply |
AC (220 ± 22) V?(50 ± 2) Hz |
|
Max power consumption |
2.5 kVA |
|
Operating condition |
0°C ~ 40°C?(20% ~ 85%) R·H?non-condensing |
|
Storage condition |
-20°C ~ 70°C?(10% ~ 95%) R·H?non-condensing |
|
Standard interfaces |
RS 232 |
|
Dimensions
|
2310 mm (W)×750 mm (D)×1280 mm (H) |
|
|
