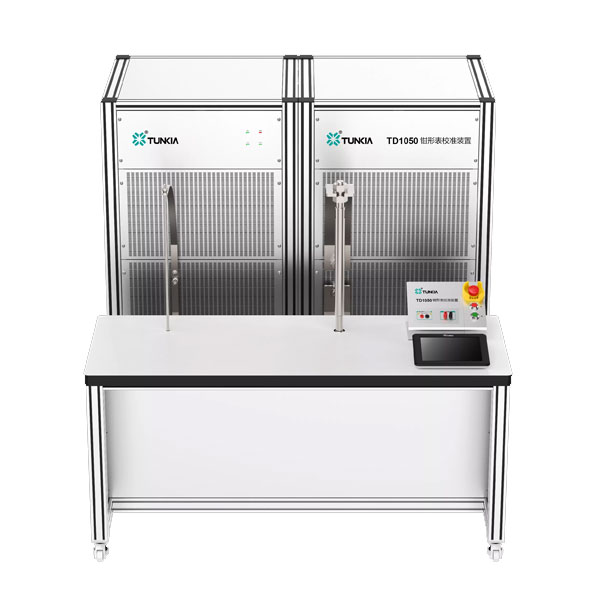

TD1050 is a calibration apparatus for multifunctional clamp meters, which integrates functions such as AC/DC high current standard source, AC/DC voltage standard source, and resistance standard source, and also has AC/DC power output function, which can meet the calibration needs of multifunctional clamp meters with different accuracy levels.
1. Summary
TD1050 is a calibration apparatus for multifunctional clamp meters, which integrates functions such as AC/DC high current standard source, AC/DC voltage standard source, and resistance standard source, and also has AC/DC power output function, which can meet the calibration needs of multifunctional clamp meters with different accuracy levels.
2. Features
• Accuracy: Class 0.05
• DC current: 10 mA ~ 1050 A?2100 A is optional?
• AC current output: 10 mA ~ 1020 A?2050 A is optional?
• DC voltage output(optional): 20 mV ~ 1100 V
• AC voltage output(optional): 1 V ~ 825 V
• Frequency: 40 Hz ~ 400 Hz
• DC resistance output(optional): 10 Ω ~ 11 MΩ
• Two thickness copper rings
• AC/DC power output(optional)

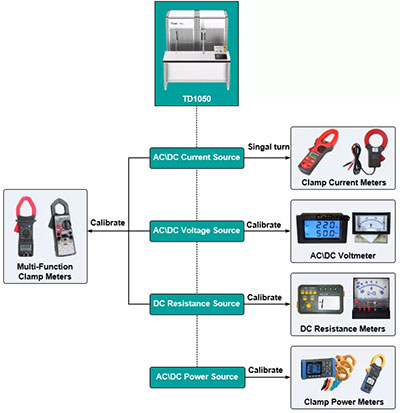

3. Application
Specifications
6.1 DC Current
|
Copper Ring |
Range |
Resolution |
Output Range |
Max Load |
|
Ring 1
|
100 mA |
1 μA |
10.000 mA ~ 110.000 mA |
8 V |
|
300 mA |
1 μA |
30.000 mA ~ 330.000 mA |
8 V |
|
|
1 A |
10 μA |
0.10000 A ~ 1.10000 A |
8 V |
|
|
3 A |
10 μA |
0.30000 A ~ 3.30000 A |
8 V |
|
|
10 A |
100 μA |
1.0000 A ~ 11.0000 A |
8 V |
|
|
30 A |
100 μA |
3.0000 A ~ 33.0000 A |
8 V |
|
|
100 A |
1 mA |
10.000 A ~ 110.000 A |
8 V |
|
|
Ring 2
|
250 A |
1 mA |
20.000 A ~ 275.000 A |
8 V |
|
500 A |
1 mA |
50.000 A ~ 550.000 A |
8 V |
|
|
1000 A |
10 mA |
100.00 A ~ 1050.00 A |
8 V |
|
|
2000 A [1] |
10 mA |
200.00 A ~ 2100.00 A |
8 V |
|
|
Note[1]: 2000 A is Optional |
||||
|
Range |
Stability (± %/min) |
Accuracy ± (ppm*RD+ppm*RG) [2] |
Ripple Factor (%) |
|
100 mA |
0.01 |
300 + 100 |
<0.5 |
|
300 mA |
0.01 |
300 + 100 |
< 0.5 |
|
1 A |
0.01 |
300 + 100 |
< 0.5 |
|
3 A |
0.01 |
300 + 100 |
< 0.5 |
|
10 A |
0.01 |
300 + 100 |
< 0.5 |
|
30 A |
0.01 |
300 + 100 |
< 0.5 |
|
100 A |
0.01 |
300 + 100 |
< 0.5 |
|
250 A |
0.01 |
300 + 100 |
< 0.5 |
|
500 A |
0.01 |
300 + 100 |
< 0.5 |
|
1000 A |
0.01 |
300 + 100 |
< 0.5 |
|
2000 A |
0.01 |
300 + 100 |
< 0.5 |
| Note[2]: RD=Reading?RG=Range, unless otherwise noted? | |||
• Output range: 10 mA ~ 1050 A\2100 A
• Manual or automatic range switch.
• Adjustment fineness: 0.002%*RG
• 6 digits decimal display
• Protections: open-circuit protection, overload protection, over-heat protection
6.2 AC Current
|
Copper Ring |
Range |
Resolution |
Output Range |
Frequency |
Max Compliance Voltage(rms) |
|
Ring 1
|
100 mA |
1 μA |
10.000 mA ~ 110.000 mA |
40 Hz ~ 400 Hz |
6 V |
|
300 mA |
1 μA |
30.000 mA ~ 330.000 mA |
40 Hz ~ 400 Hz |
6 V |
|
|
1 A |
10 μA |
0.10000 A ~ 1.10000 A |
40 Hz ~ 400 Hz |
6 V |
|
|
3 A |
10 μA |
0.30000 A ~ 3.30000 A |
40 Hz ~ 400 Hz |
6 V |
|
|
10 A |
100 μA |
1.0000 A ~ 11.0000 A |
40 Hz ~ 400 Hz |
6 V |
|
|
30 A |
100 μA |
3.0000 A ~ 33.0000 A |
40 Hz ~ 400 Hz |
6 V |
|
|
100 A |
1 mA |
10.000 A ~ 110.000 A |
40 Hz ~ 400 Hz |
6 V |
|
|
Ring 2
|
250 A |
1 mA |
20.000 A ~ 275.000 A |
40 Hz ~ 400 Hz |
6 V |
|
500 A |
1 mA |
50.000 A ~ 550.000 A |
40 Hz ~ 400 Hz |
6 V |
|
|
1000 A |
10 mA |
100.00 A ~ 1020.00 A |
40 Hz ~ 400 Hz |
6 V |
|
|
2000 A [3] |
10 mA |
200.00 A ~ 2050.00 A |
40 Hz ~ 400 Hz |
6 V |
|
Range |
Stability (± %/min) |
Accuracy ± (ppm*RD+ppm*RG) |
Distortion (%) |
|
100 mA |
0.01 |
300 + 100 |
<0.5 |
|
300 mA |
0.01 |
300 + 100 |
<0.5 |
|
1 A |
0.01 |
300 + 100 |
<0.5 |
|
3 A |
0.01 |
300 + 100 |
<0.5 |
|
10 A |
0.01 |
300 + 100 |
<0.5 |
|
30 A |
0.01 |
300 + 100 |
<0.5 |
|
100 A |
0.01 |
300 + 100 |
<0.5 |
|
250 A |
0.01 |
300 + 100 |
<0.5 |
|
500 A |
0.01 |
300 + 100 |
<0.5 |
|
1000 A |
0.01 |
300 + 100 |
<0.5 |
|
2000 A [1] |
0.01 |
300 + 100 |
<0.5 |
| Note[3]: Range 2000 A is optional. | |||
• Output range: 10 mA ~ 1020 A (2050 A)
• Frequency: 40 Hz ~ 400 Hz, adjustment fineness 0.001 Hz?accuracy ±0.01%?
• Adjustment fineness: 0.002%*RG
• 6 digits display
• Protections: open-circuit protection, overload protection, over-heat protection
6.3 DC Voltage(optional)
|
Range |
Resolution |
Output Range |
Max Burden |
|
200 mV |
1 μV |
20.000 mV ~ 220.000 mV |
100 mA |
|
1 V |
10 μV |
0.10000 V ~ 1.00000 V |
100 mA |
|
10 V |
100 μV |
1.0000 V ~ 11.0000 V |
100 mA |
|
30 V |
100 μV |
3.0000 V ~ 33.0000 V |
600 mA |
|
100 V |
1 mV |
10.000 V ~ 110.000 V |
200 mA |
|
300 V |
1 mV |
30.000 V ~ 330.000 V |
60 mA |
|
600 V |
1 mV |
60.000 V ~ 660.000 V |
25 mA |
|
1000 V |
10 mV |
100.00 V ~ 1100.00 V |
20 mA |
|
Range |
Stability (± %/min) |
Accuracy ± (ppm*RD+ppm*RG) |
Ripple Factor (%) |
|
200 mV |
0.01 |
300 + 200 |
<0.5 |
|
1 V |
0.01 |
300 + 200 |
< 0.5 |
|
10 V |
0.01 |
300 + 200 |
< 0.5 |
|
30 V |
0.01 |
300 + 200 |
< 0.5 |
|
100 V |
0.01 |
300 + 200 |
< 0.5 |
|
300 V |
0.01 |
300 + 200 |
< 0.5 |
|
600 V |
0.01 |
300 + 200 |
< 0.5 |
|
1000 V |
0.01 |
300 + 200 |
< 0.5 |
• Output range: 20 mV ~ 1100 V
• Manual or automatic range switch
• Adjustment fineness: 0.002%*RG
• 6 digits display
• Protections: short-circuit protection, overload protection, over-heat protection
6.4 AC Voltage(optional)
|
Range |
Resolution |
Output Range |
Frequency |
Max Burden(rms) |
|
10 V |
100 μV |
1.0000 V ~ 11.0000 V |
40 Hz ~ 400 Hz |
800 mA |
|
30 V |
100 μV |
3.0000 V ~ 33.0000 V |
40 Hz ~ 400 Hz |
700 mA |
|
100 V |
1 mV |
10.000 V ~ 110.000 V |
40 Hz ~ 400 Hz |
200 mA |
|
300 V |
1 mV |
30.000 V ~ 330.000 V |
40 Hz ~ 400 Hz |
70 mA |
|
750 V |
1 mV |
75.000 V ~ 825.000 V |
40 Hz ~ 400 Hz |
30 mA |
|
Range |
Stability (± %/min) |
Accuracy ± (ppm*RD+ppm*RG) |
Distortion Factor (%) |
|
10 V |
0.01 |
300 + 200 |
<0.5 |
|
30 V |
0.01 |
300 + 200 |
<0.5 |
|
100 V |
0.01 |
300 + 200 |
<0.5 |
|
300 V |
0.01 |
300 + 200 |
<0.5 |
|
750 V |
0.01 |
300 + 200 |
<0.5 |
• Output range: 1 V ~ 825 V
• Frequency: 40 Hz ~ 400 Hz, adjustment fineness 0.001 Hz, accuracy ±0.01%?
• Manual or automatic range switch
• Adjustment fineness: 0.002%*RG
• 6 digits display
• Protections: short-circuit protection, overload protection, over-heat protection
6.5 DC Resistance(optional)
|
Range |
Resolution |
Output Range |
Accuracy ± (ppm*RD+ppm*RG) |
Allowable Current |
|
100 Ω |
1 mΩ |
10.000 Ω ~ 110.000 Ω |
300 + 200 |
1 mA ~ 50 mA |
|
1 kΩ |
10 mΩ |
0.10000 kΩ ~ 1.10000 kΩ |
300 + 200 |
100 μA ~ 5 mA |
|
10 kΩ |
100 mΩ |
1.0000 kΩ ~ 11.0000 kΩ |
300 + 200 |
10 μA ~ 500 μA |
|
100 kΩ |
1 Ω |
10.000 kΩ ~ 110.000 kΩ |
300 + 200 |
10 μA ~ 50 μA |
|
1 MΩ |
10 Ω |
0.10000 MΩ ~ 1.10000 MΩ |
300 + 200 |
1 μA ~ 5 μA |
|
10 MΩ |
100 Ω |
1.0000 MΩ ~ 11.0000 MΩ |
600 + 400 |
100 nA ~ 500 nA |
• Output range: 10 Ω ~ 11 MΩ
• Manual or automatic range switch
• Adjustment fineness: 0.002%*RG
• 6 digits display
6.6 AC\DC Power(optional)
|
Type |
Current Range |
Combination of Voltage and Current |
Accuracy ± (%*Power Output)[1] [2] |
|
DC
|
1000 A |
(20 mV~1100 V) × (10 mA~1050 A) |
0.07~0.29 |
|
2000 A [3] |
(20 mV~1100 V) × (10 mA~2100 A) |
0.07~0.29 |
|
|
AC
|
1000 A |
(1 V~825 V) × (10 mA~1020 A) |
0.07~0.42 |
|
2000 A[3] |
(1 V~825 V) × (10 mA~2050 A) |
0.07~0.42 |
|
|
|
|||
6.7 Phase and Power Factor?45 Hz~65 Hz??optional?
|
Type |
Range |
Adjustment fineness |
Accuracy[1] |
|
φ |
0.000°~359.999° |
0.005° |
0.1° |
|
λ |
-1 … 0 … +1 |
0.0001 |
0.30% @ (λ=0.5) |
|
|
|||
7. General Specifications
|
Power supply |
AC (380 ± 38)V?( 50 ± 2 ) Hz |
|||||
|
Max Power Consumption |
16 kVA @ 1000 A Model?32 kVA @ 2000 A Model |
|||||
|
Operating Condition |
0°C~40°C?(20%~85%) R·H?non-condensing |
|||||
|
Storage Condition |
-20°C~70°C?(10%~95%) R·H?non-condensing |
|||||
|
Standard Interfaces |
RS232×1 |
|||||
|
Dimensions
|
Range
|
Width(W)
|
Depth(D)
|
Height(H)
|
Diameter of the copper ring |
|
|
Ring 1(Ø1) |
Ring 2(Ø2) |
|||||
|
1000 A |
740 mm |
1723 mm |
1467 mm |
10 mm |
19 mm |
|
|
2000 A |
1480 mm |
1723 mm |
1467 mm |
10 mm |
27 mm |
|
|
|
||||||
8. Ordering information
|
|
||||
|
Function |
AC/DC Current Output ( ACI & DCI ) |
AC/DC Voltage Output ( ACV & DCV ) |
Resistance Output (Res ) |
Power Output (Power) |
|
TD1050-X |
? |
— |
— |
— |
|
TD1050-X-M |
? |
? |
? |
? |
