Phase And Amplitude Stable RF Testing Cable (DC - Max.50GHz)

Saluki , Accessories

Key Features

  • Frequency range: DC - max. 50GHz
  • Mulitiple connector types
  • Mulitiple armour options
  • Low loss and stability flexible cable


Applications

  • Electronic instruments
  • Connection and test

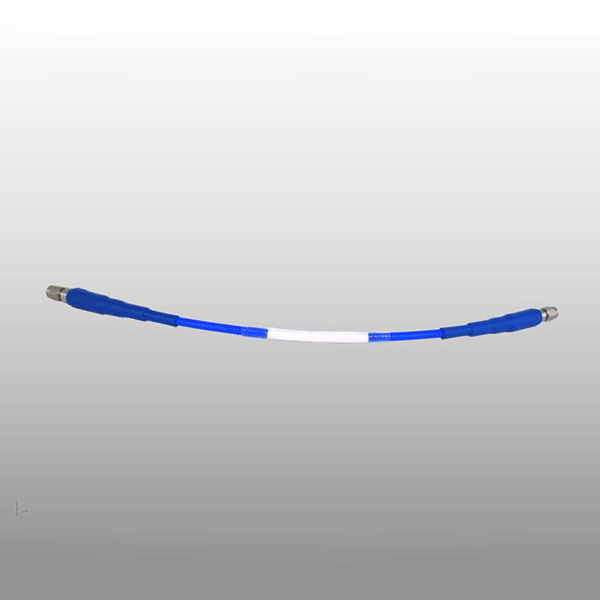

Saluki Phase and Amplitude stable RF Testing cable has the characteristics of good flexibility, light weight and small space. It can be used for any high frequency signal transmission between systems or instruments where low loss and stability are critical. SCA cables are available with a wide range of connectors offering excellent specifications.


Key Features

  • Frequency range: DC - max. 50GHz
  • Mulitiple connector types
  • Mulitiple armour options
  • Low loss and stability flexible cable


Applications

  • Electronic instruments
  • Connection and test

Technical Specifications

Part Number Frequency Range Connector A Connector B Length Insertion Loss VSWR

Amplititude

 Stability

Phase Stability
SCA9696A-B9NL24 DC - 26.5GHz SMA (M) SMA (M) 24 inch 1.33 1.25 ±0.1 ±8°
SCA9696A-B9NL36 DC - 26.5GHz SMA (M) SMA (M) 36 inch 1.81 1.25 ±0.1 ±8°
SCA9696A-B9NL48 DC - 26.5GHz SMA (M) SMA (M) 48 inch 2.30 1.25 ±0.1 ±8°
SCA7676A-B7NL24 DC - 40GHz 2.92mm (M) 2.92mm (M) 24 inch 1.99 1.25 ±0.1 ±5°
SCA7676A-B7NL36 DC - 40GHz 2.92mm (M) 2.92mm (M) 36 inch 2.79 1.25 ±0.1 ±5°
SCA7676A-B7NL48 DC - 40GHz 2.92mm (M) 2.92mm (M) 48 inch 3.60 1.25 ±0.1 ±5°
SCA8686A-B0NL24 DC - 50GHz 2.4mm (M) 2.4mm (M) 24 inch 2.57 1.25 ±0.1 ±5°
SCA8686A-B0NL36 DC - 50GHz 2.4mm (M) 2.4mm (M) 36 inch 3.57 1.25 ±0.1 ±5°
SCA8686A-B0NL48 DC - 50GHz 2.4mm (M) 2.4mm (M) 48 inch 4.57 1.25 ±0.1 ±5°



Armour





Naming Rules



Sample:



General Information

Connector Materials Body Stainless steel, Passivated/Au-plated brass
Center Conductor Au-plated beryllium copper
Environmental Data Operating Temperature -55°C to +125°C

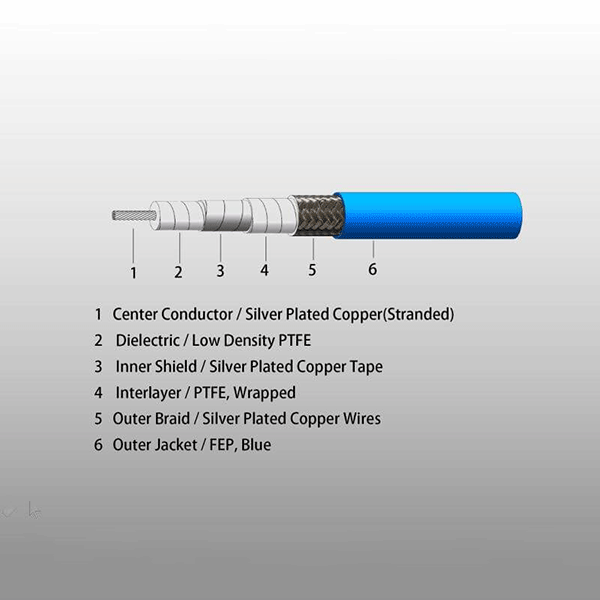

Cable Descriptions Center Conductor Ag-plated Cu
Dielectric PTFE
Outer Conductor Outer conductor
Inner Braid Ag-plated copper braid
Outer Jacket PFA / FEP
