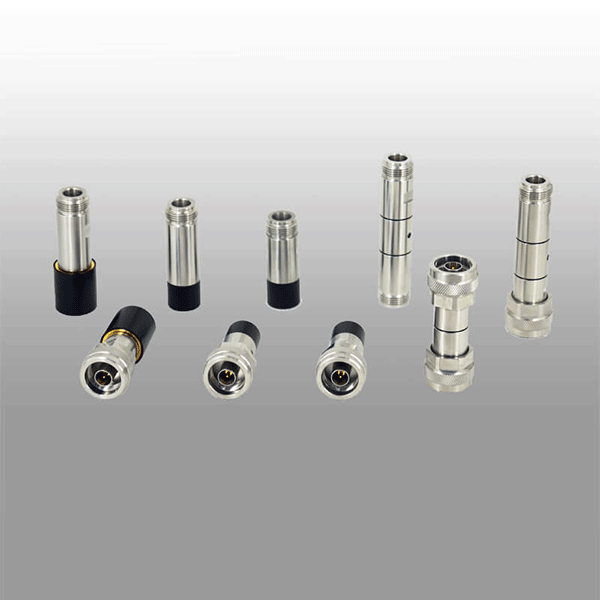

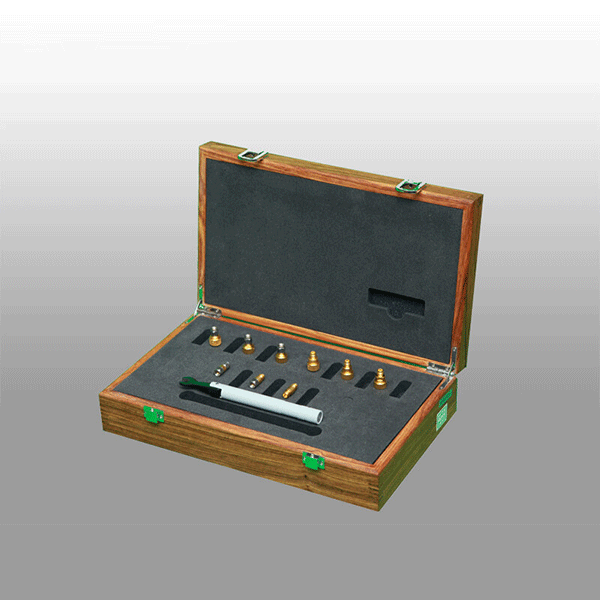

SCKCL03-N(75Ω) mechanical calibration kit contains precision standard devices to calibrate network analyzers in the N-type interface. This kit also contains adapters to change the sex of the test port, and a torque wrench to ensure a repeatable reliable connection.
Key Features
Application
| Model | Frequency | Spec. | List | Qty. |
|
SCKCL03-N (75Ω) (Calibration Level) |
DC - 3GHz | Open: ±1.6° Short: ±1.2° Load: VSWR<1.04 Adaptor: VSWR<1.04 |
Open: N(M), 75Ω | 1 |
| Open: N(F), 75Ω | 1 | |||
| Short: N(M), 75Ω | 1 | |||
| Short: N(F), 75Ω | 1 | |||
| Load: N(M), 75Ω | 1 | |||
| Load: N(F), 75Ω | 1 | |||
| N(f), 75Ω-N(f), 75Ω adaptor | 1 | |||
| N(m), 75Ω-N(m), 75Ω adaptor | 1 | |||
| N(m), 75Ω-N(f), 75Ω adaptor | 1 | |||
| N-type torque wrench | 1 | |||
| Options | ||||
| N(f), 50Ω-N(m), 75Ω adaptor | 2 | |||
| N(m), 50Ω-N(m), 75Ω adaptor | 2 | |||
| N(m), 50Ω-N(f), 75Ω adaptor | 2 | |||
| N(f), 50Ω-N(f), 75Ω adaptor | 2 |
