Compact and portable

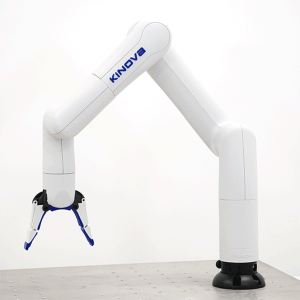

Meet Gen3 lite, a cost-efficient solution for education and professional applications,
adaptable for all levels of expertise with low-level and high-level controls.
Being the newest and most compact member of the Kinova ultra-lightweight robot series, the Gen3 lite offers a more cost-efficient option if you're looking for one or multiple professional-grade robotic arms to perform light manipulation tasks. The Gen3 lite is perfectly suited for professional academic-level education needs.
In addition, the Gen3 lite runs on the powerful and robust Kinova® Kortex™ API software, so you can seamlessly share programming and collaborate with other Gen3 lite or Gen3 units.
• Ultra-lightweight
• Highly portable
• Power-efficient
• Ideal for mobile applications
The Gen3 lite is adaptable for all levels of expertise, so you can
control your robot to perform everything from simple grasping tasks to
programming more complex manipulation applications in MATLAB, ROS, C++, and Python.
• Efficient, transparent actuators with an embedded controller.
• High-level and low-level control
• 1 kHz low-level closed-loop control
• Plug-and-play
• Protection zones
Degrees of freedom
6 DDL
Payload (mid-range continuous)
0.5 kg / 1.1 lbs
Total weight
5.4 kg / 11.9 lbs
Maximum reach
760 mm
Maximum speed
25 cm/s
Actuator joint range
± 155 to 160°
Power supply voltage
21 to 30 VDC, 24 VDC nominal
Average power
20 W
Ingress protection
IP22
Operating temperature
0 °C to 40 °C / 32 °F to 104 °F
