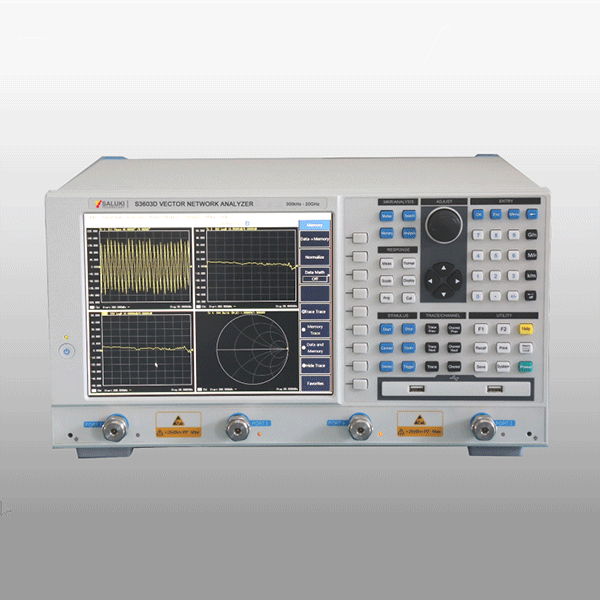

S3603D Vector Network Analyzer has powerful functions and support various ports to build a measurement system. S3603D is capable to do an accurate measurement to filters, amplifiers, antenna, cable etc.
Saluki S3603D is a powerful and efficient Vector Network Analyzer widely used in industries like wireless communications, cable TV, automotive electronics etc. S3603D is capable to do an accurate measurement to filters, amplifiers, antenna, cable etc. S3603D has a LCD screen and a friendly GUI. It also supports various interfaces such as USB, LAN, GPIB and VGA to build a measurement system.
S3603D Vector Network Analyzer has powerful functions such as time domain and frequency domain, and provide multiple display in formats such as logarithm magnitude, linear magnitude, standing-wave ratio (SWR), phase, group delay, Smith circle diagram Smith chart and polar coordinates as well as multiple calibrations including the calibration of response, single port, response isolation and enhanced response, the calibration of full double ports and the electric calibration.
| Specifications of S3603D Vector Network Analyzer | |||
| Frequency Range | 300kHz - 20GHz | ||
| Frequency Resolution | 1Hz | ||
| Frquency Accuracy | ±1×10-6 , (23°C±3°C) | ||
|
System Dynamic Range (IF bandwidth: 10Hz) |
Frequency range | 2-port | 4-port |
|
300kHz - 100MHz |
95dB | 90dB | |
|
100MHz - 1GHz |
110dB | 100dB | |
|
1GHz - 6GHz |
120dB | 115dB | |
| 6GHz - 8GHz | 117dB | 110dB | |
| 8GHz - 10GHz | 115dB | 105dB | |
| 10GHz - 15GHz | 110dB | 100dB | |
| 15GHz - 20GHz | 100dB | 90dB | |
| Reflection Track |
300kHz - 10MHz: ±0.03dB |
10MHz - 3GHz: ±0.04dB |
3GHz - 20GHz: ±0.05dB |
| Transmission Track | 300kHz - 10MHz: ±0.03dB | 10MHz - 3GHz: ±0.04dB | 3GHz - 6GHz: ±0.10dB |
| 6GHz - 20GHz: ±0.15dB | |||
| Effective Directivity | 300kHz - 10MHz: 46dB | 10MHz - 3GHz: 42dB | 3GHz - 6GHz: 38dB |
| 6GHz - 20GHz: 36dB | |||
| Effective Source Match | 300kHz - 10MHz: 44dB | 10MHz - 3GHz: 42dB | 3GHz - 6GHz: 38dB |
| 6GHz - 20GHz: 36dB | |||
| Test Points | 1 to 16001 | ||
| Average Factor | 1 to 1024 | ||
| Channel |
Max. 64 independent channels |
||
| IF Bandwidth |
1Hz - 5MHz (Stepping by 1,2,3,5,7) |
||
| Magnitude Display Resolution |
0.001dB/div |
||
|
Phase display Resolution |
0.01°/div |
||
|
Reference Level Magnitude |
-500 to +500dB |
||
|
Input Reference Phase Range |
-500 to +500° |
||
|
Port Connector Type |
3.5mm (male),50 Ω impedance |
||
|
Number of Test Ports |
2/4 | ||
|
Number of Test Receivers |
2/4 | ||
|
Time-base Reference Output |
Output frequency: 10MHz, Output level: +10dBm±4dB |
||
|
Peripheral Interface |
USB, GPIB, VGA, LAN |
||
| Operating System |
Windows xp/ Windows 7 |
||
| Dimension (W*H*D) | 436*236.5*410 | ||
| Power Consumption | Max. 150W | ||
| Power Supply |
50Hz single phase 220V or 50Hz/60Hz single phase 110V AC |
||
| Weight | 18kg | ||
| Display |
10.4-inch high brightness LCD |
||
| No. | Item | Qty. |
| 1 | Main machine |
1 set |
| 2 | Power cord |
1 pcs |
| 3 | User manual | 1 pcs |
| 4 | CD or disk | 1 pcs |
| Option No. | Item | Description |
| S3603D-12 | 20403 Electronic calibration kit |
10MHz - 26.5GHz, 3.5mm (female to male), 2 port |
| S3603D-13 | 20405 Electronic calibration kit |
10MHz - 20GHz, 3.5mm (female), 4 port |
| S3603D-19 | Cabinet | Easy to build system |
| S3603D-30 | 3.5mm calibration kit | DC - 26.5GHz |
| S3603D-31 |
3.5NMD/3.5mm-KJ testing cable |
\ |
| S3603D-32 |
3.5NMD/3.5mm-KK testing cable |
\ |
| S3603D-33 |
3.5mm testing cable |
GORE-FB0HA0HB025.0 |
| S3603D-34 |
3.5mm testing cable |
GORE-FB0HA0HC025.0 |
| S3603D-35 | 2-port option | \ |
| S3603D-37 | 4-port option | \ |
| S3603D-38 |
Aluminum carrying case |
\ |
