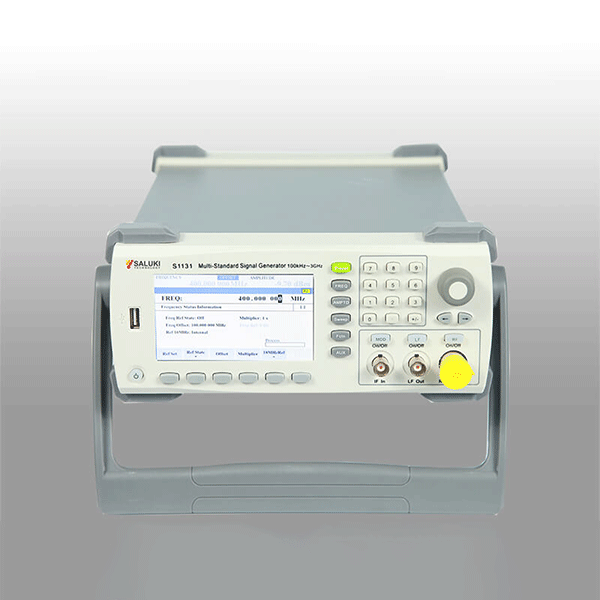

The Saluki S1131 RF signal generator provides engineers with a "Smaller, lighter and easier" solution for 3GHz signal-generation applications. While it is an entry level instrument, the S1131 provides most commonly used functions an engineer needs such as CW signal generation, AM/FM/PM/Pulse modulation, digital modulation (ASK, FSK, PSK), Up-converting, LF output etc. The S1131 supports SCPI so it is easy to build your own programs for remote control. It is also very suitable and attractively priced for use in the education market.
Applications
|
Specifications |
|||
|
Frequency Range |
9kHz - 3GHz |
||
|
Sweep Modes |
Step Sweep / List Sweep |
||
|
Output Power Range |
-120 dBm - 10 dBm |
||
|
Output Power Resolution |
0.01 dB |
||
|
Power Accuracy |
±0.1 dB (typ.) |
||
|
VSWR |
<1.8 |
||
|
SSB Phase Noise (dBc/Hz) |
Carrier Frequency Offset |
10 kHz |
100 kHz |
|
f = 300MHz |
-105 dBc/Hz |
-115 dBc/Hz |
|
|
f = 1GHz |
-93 dBc/Hz |
-105 dBc/Hz |
|
|
Harmonic |
<-30 dBc (typ.) |
||
|
Non-Harmonic |
<-50 dBc (typ.) |
||
|
Analog Modulation Functions |
AM,FM,PM,Pulse |
||
|
General |
|||
|
RF Output Interface |
N type 50 Ω |
||
|

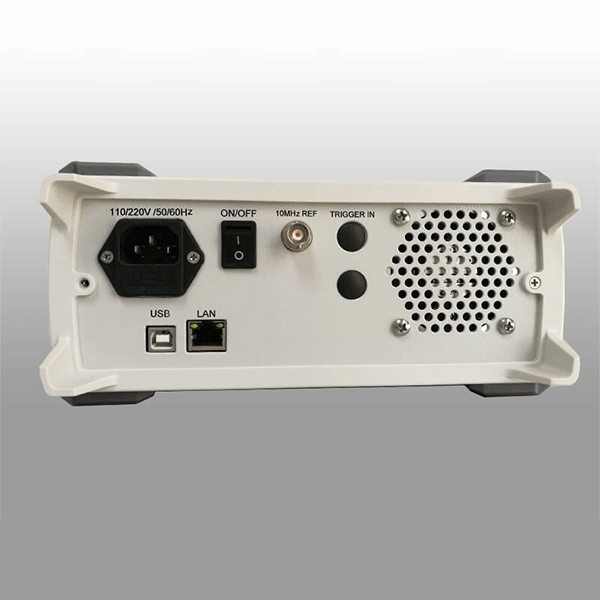

Telecommunication Interfaces |
USB, LAN |
||
|
Dimension |
340× 230×110 mm |
||
|
Weight |
<5 kg |
||
|
Operating Temp. |
0 - +45 °C |
||
|
Power Supply |
110 - 240V 50/60 Hz AC |
||
| No. | Item | Qty' |
| 1 | S1131 main machine | 1 set |
| 2 | Power cord | 1 pcs |
| 3 | CD | 1 pcs |
| Option No. | Item |
| S1131-01 | Internal Baseband Data Generation Option |
| S1131-02 | RF Upconversion Device |
| S1131-03 | Analog External Audio Modulation |
| S1131-04 | High Stability Time Base Option |
| S1131-05 | Power Meter Control Kit |
| S1131-06 | Directional Antenna (600MHz - 8GHz) |
| S1131-07 | Omnidirectional Antenna (300MHz - 7.5GHz) |
