GDM-906x

GW Instek , Digital Meters

Out of Stock

6 1/2 Digit Display:1,200,000 Counts
4.3 TFT Craphic LCD
DCV Basic Accuracy:0.0035%(GDM-9061)/0.0075%(GDM-9060)
12 Measurement Functions: DCV, ACV, DCI, ACI, 2-wire and 4-wire Resistance, Frequency, Period, Diode, Continuity, Temperature and Capacitance
Sampling Rate up to 10k SPS (GDM-9061)
Dual Measurement Function to Providing Two Selected Measurement Simultaneously
Offer Graphical Capabilities lncluding Histogram, Bar Meter and Trend
Temperature Measurement Support RTD, Thermistor as Well as Thermocouple

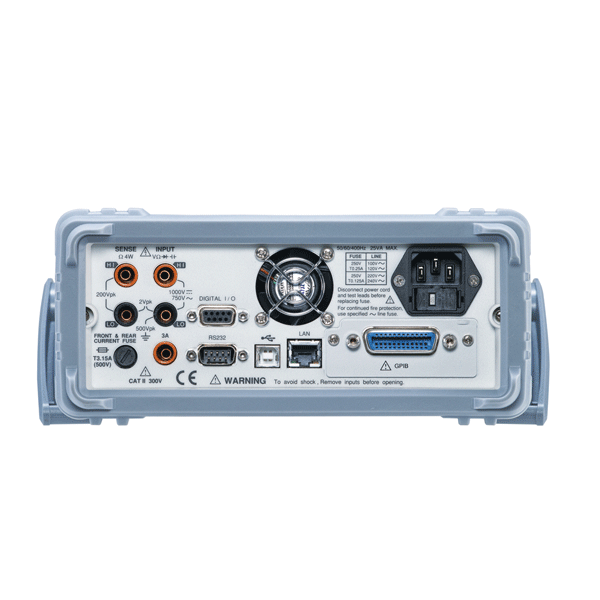

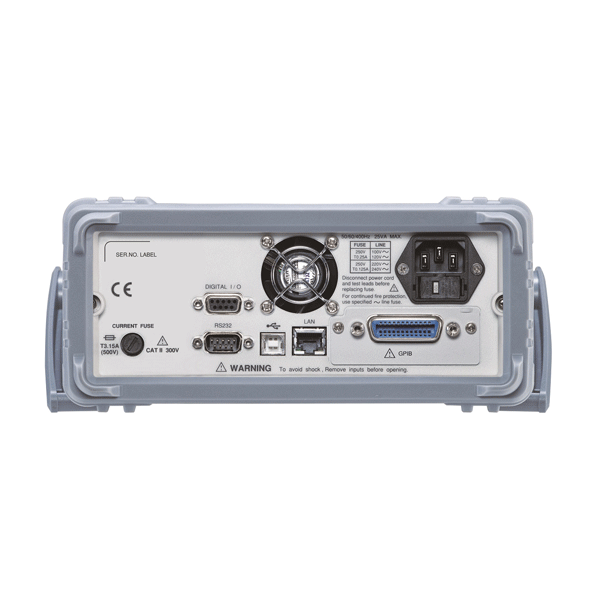

Standard Interfaces: USB Host/Device, RS-232C, LAN, Digital I/O
Optional Interface: GPIB

More information contact below :

marketing@cyber-tekno.com

021 5431 5536

0821 3973 6300

Ordering Info

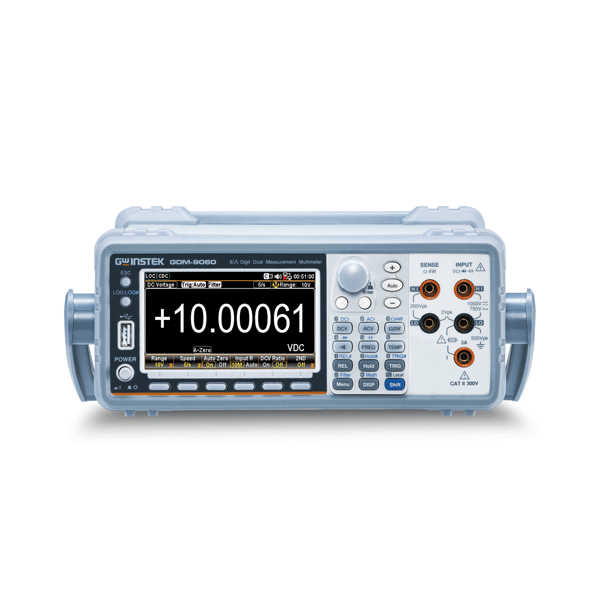

GDM-9060

6 1/2 (1200000 counts) Digit Dual Measurement Multimeter. DCV Basic Accuracy:0.0075%

GDM-9061

6 1/2 (1200000 counts) Digit Dual Measurement Multimeter. DCV Basic Accuracy:0.0035%

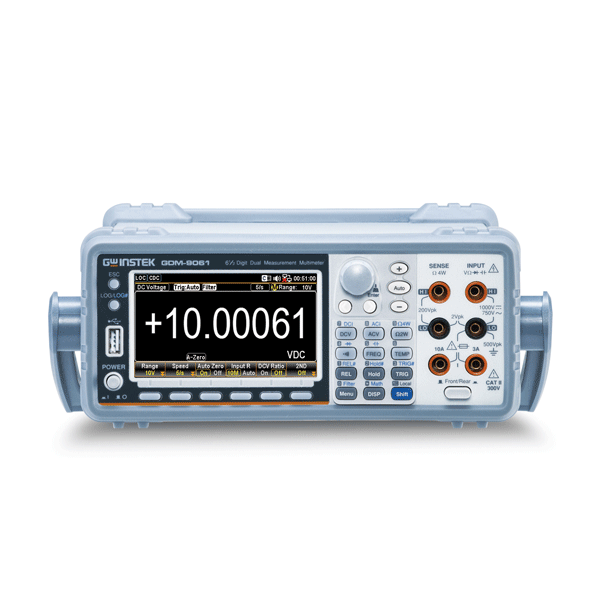

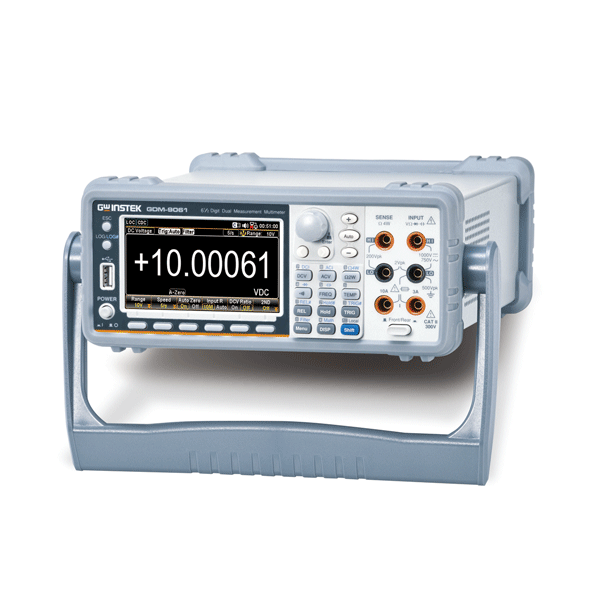

GW Instek launches GDM-906X series 6 ½ digit dual measurement multimeter (2 models: GDM-9061 and GDM-9060), featuring high precision DC voltage accuracy, fast sampling rate, 12 measurement functions (DC voltage/current, AC voltage/current, 2-wire/4-wire resistance, frequency, period, diode, continuity beeper, temperature, capacitance), 6 mathematical functions (dB/dBm/Compare/ MX+B/Percent and 1/X) as well as a variety of communications interfaces (USB device/host, RS-232C, LAN, digital I/O and optional GPIB) to provide comprehensive measurement capabilities, higher speed and accuracy.

Included Accessories
Safety Instructions x 1, Power cord x 1
USB cable GTL-246 x 1, Test lead GTL-207A x 1
CD x1(including the complete user manual, upgrade program and PC software, DMM-Viewer2)

Option
Opt.1 GPIB card
(*) GPIB can be installed at customer site

Optional Accessories
GTL-205 Temperature Probe Adapter with Thermal Coupling (K-type), approx. 1000mm
GTL-234 RS-232C Cable, 9-pin female-female cable, approx. 2000mm
GTL-248 GPIB Cable, approx. 2000mm
GTL-308 4Wire Type (+shield) Test lead, approx. 1500mm

GRA-422 Rack Mount Kit(19",2U)
