FIBERMASTER

Ideal Networks , Fibre Data Cable Tester

Quickly measures cabling loss (dB) with calibration feature

Measures fibre optic power for troubleshooting

Universal/FC power meter connectors

Interchangeable light source SC/ST/FC connectors

Multi-mode and single mode options

OVERVIEW

The IDEAL FiberMASTER™ fibre optic testing kit allows the user to measure absolute power and calculate the loss of fibre optic links at several wavelengths. Absolute power measurements are helpful when trouble shooting equipment that may not be operating properly. The dB calibration feature allows the operator to set a reference level to the light source and directly read the loss of fibre optic links without needing to manually calculate the values. The unique form factor allows the light source to be docked neatly within the power meter. This makes the kit compact for easy storage while still allowing full operation of both the source and meter.

PRODUCT FEATURES

  • Troubleshoot fibre optic network components with optical power meter
  • Display power loss in dB using reference function

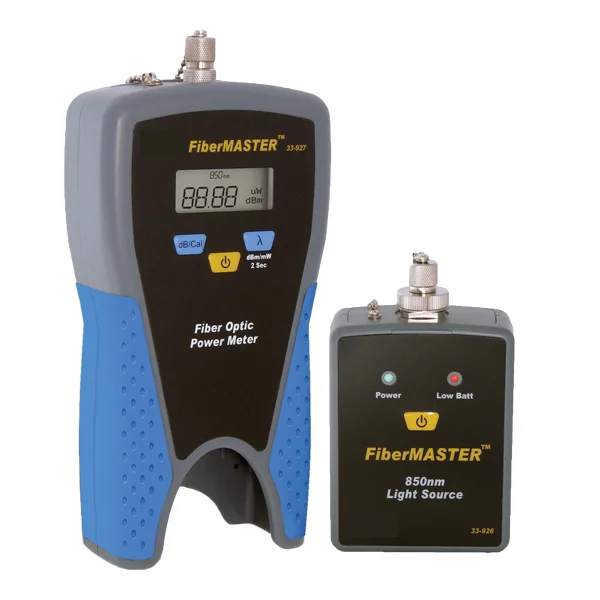

  • Unique form factor for easy storage of the light source allowing full operation of both light source and power meter
  • Measures fibre optic power in milliwatts (mW) and decibel-milliwatts (dBm) for troubleshooting

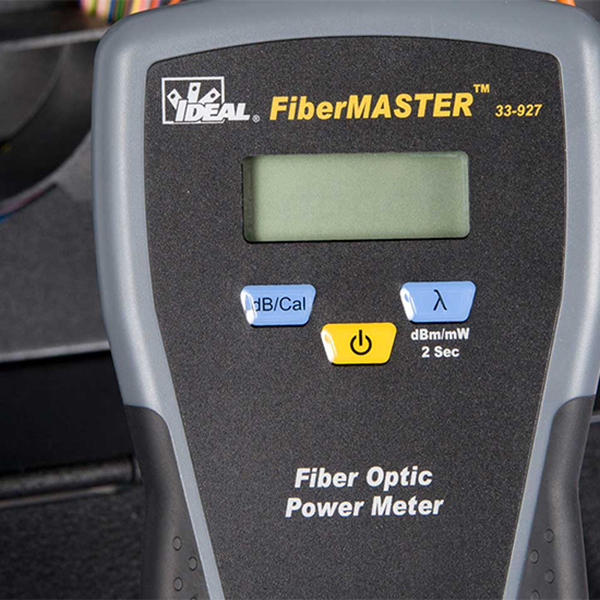

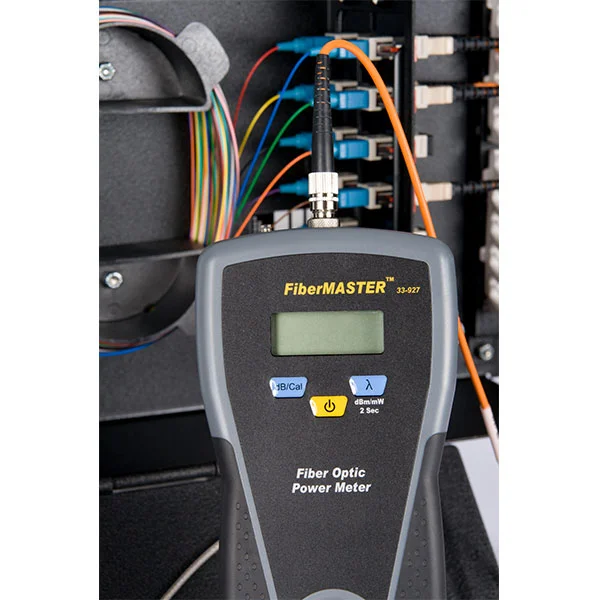

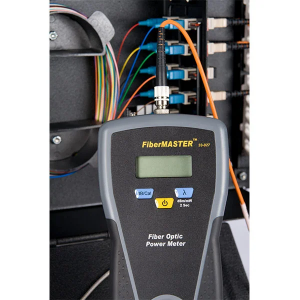

Power Meter:

  • 850, 1300, 1310, 1490 and 1550 nm measurements

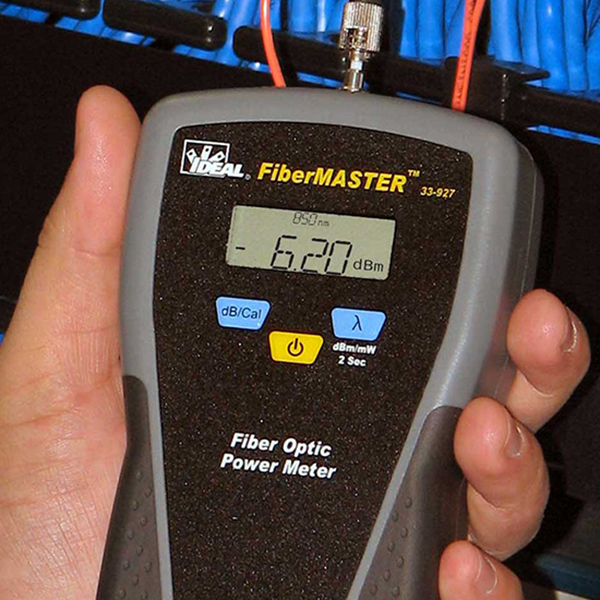

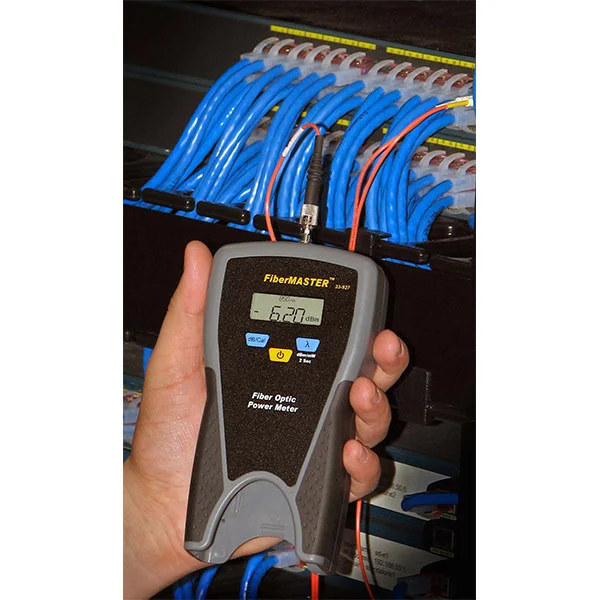

  • Power measurement in dBm and mW, loss display in dB
  • Auto Power Off
  • Includes universal 2.5mm adaptor and fixed FC adapter
  • Operates on standard AAA batteries, (3)

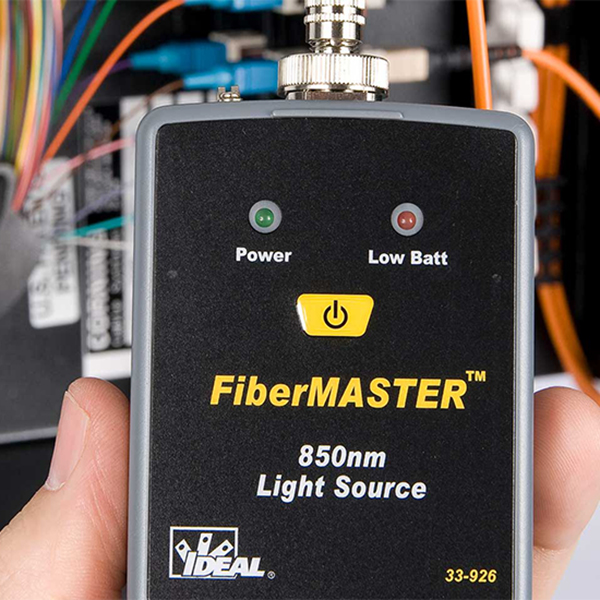

Light Source

  • 850nm VCSEL/Laser – 33-928 MM kit
  • 850/1300nm (VCSEL/Laser), 1310/1550nm (Laser) – 33-931 MM/SM kit
  • Includes ST, SC and FC adaptors

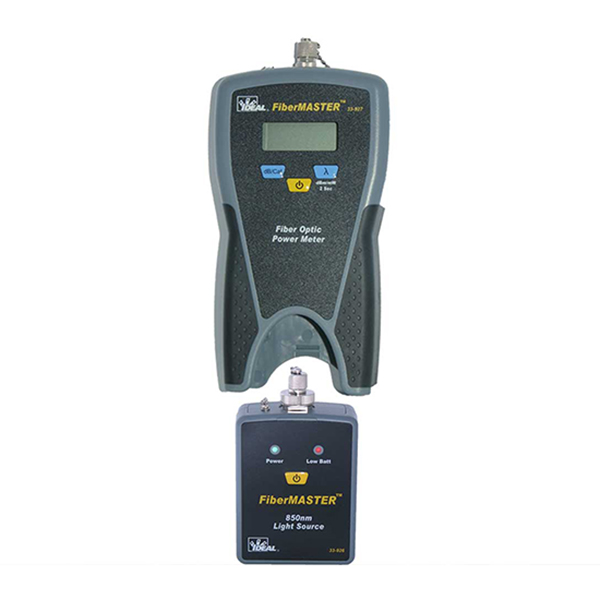

  • Docks in the bottom of the power meter for easy storage
  • Operates on standard AAA batteries, (3)
  • Low battery indication

Applications
For certification and troubleshooting of fibre optic cabling

  • Certifying (Tier 1) cable performance to ISO 11801 and TIA 568-C standards
  • Meet cabling specifications as required by engineers, designers and clients
  • Avoid call-backs by identifying faults while onsite
  • Ensure cable loss falls within allowable power budget of network components
  • Troubleshoot fibre optic network components by measuring power output
