APS-7000

GW Instek , AC Power Supplies

Out of Stock

4.3-inch TFT-LCD
Output capacity : APS-7050(500VA?310Vrms?4.2Arms)?APS-7100 (1000VA?310Vrms?8.4Arms)?APS-7200(2000VA?310Vrms?16.8Arms)?APS-7300 (3000VA?310Vrms?25.2Arms)?Output augmentation by options (0~600Vrms/45~999.9Hz)
Low Ripple & Noise
Measurement and test functions include VOLT?CURR?PWR?SVA?IPK?IPKH?FREQ?PF?CF
Support a small AC current measurement 2mA ~ 35A, Min. resolution 0.01mA(APS- 7050& APS-7100)
Reverse Current Alarm Function
10 sets of Sequence function to Edit Output Waveforms/ 10 sets of simulate mode to Rapidly Simulate Transient Power Supply/ 10 sets of Program mode to Define Measurement Sequence/ 10 sets of Panel Memory Function
Automatic Execution of Sequence?Simulate?Program mode and Output Function when the Power is on
Standard Interfaces: USB Host, USB Device, LAN
Optional Interfaces: GPIB (APS-001)?RS-232 / USB CDC(APS-002 for APS-7050& APS-7100 only)?RS-232(APS-007 for APS-7200& APS-7300 only)

More information contact below :

marketing@cyber-tekno.com

021 5431 5536

0821 3973 6300

Ordering Info

GRA-423

APS-7000 rack mount kit

APS-004

Output Frequency Capacity (45~999.9Hz)

APS-003

Output Voltage Capacity (0~600Vrms)

APS-002

RS-232 / USB interface card

APS-001

GPIB interface card

APS-7300

APS-7300 3000VA Programmable AC Power Source

APS-7200

2000VA Programmable AC Power Source

APS-7100

1000VA Programmable AC Power Source

APS-7050

500VA Programmable AC Power Source

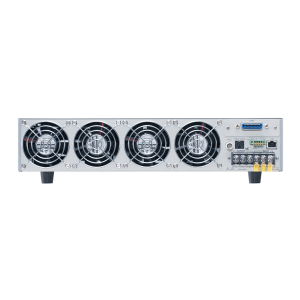

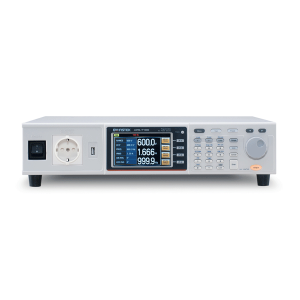

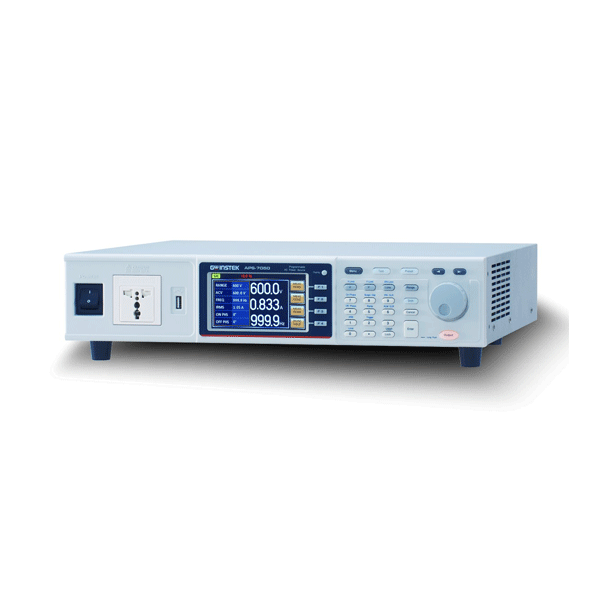

GWInstek introduces APS-7000 series programmable AC power sources, which consists of 500VA of APS-7050, 1000VA of APS-7100, 2000VA of APS-7200 and 3000VA of APS-7300. APS-7000 series features power characteristics from its linear structure design including low noise, low THD, and highly stabilized power output that are ideal for the product development and verification of input power with low noise requirement or stereo, video and audio device applications, etc. The maximum rated voltage is 0~ 310Vrms, 25.2Arms, 100.8A peak current and the output frequency range is 45~500.0Hz. Users can conveniently augment the output voltage from 0Vrms to 600Vrms and output frequency from 45Hz to 999.9Hz by purchasing options without sending equipment back to GW Instek.

One of the popular alternative energy solutions in the market is to utilize inverter to convert DC to AC and the converted AC is then sent to power grid or products require electricity. For instance, AC produced by PV inverter is sent to power grid or equipment requires electricity. While simulating power grid to verify inverter connecting with power grid, general AC power sources cannot withstand DUT's feedback energy, hence, additional power consumption resistors are needed to prevent AC power source from being damaged. On the contrary, APS-7000 series has the characteristic of absorbing reverse current so that additional power consumption resistors are not required. The input terminal of APS-7000 series is designed to isolate from the simulated AC power grid output terminal, therefore, users do not need an additional isolation device to protect DUT.

APS-7000 series is suitable for simulating power grid and conducting inverter output characteristic tests, including synchronized phase and frequency. Reverse current and power detected by APS-7000 series will be displayed in red readings to facilitate user's test observation. APS-7000
series utilizes Simulate mode and Sequence mode to provide a single step or consecutive power changes; and to simulate power grid's Voltage Abnormality Test and Frequency Abnormality Test.

More details, please follow APS-7000 series brochure.

1. Simulated Mode

This mode can rapidly produce different simulated input transient waveforms such as power outage; voltage rise and voltage fall etc. for engineers to evaluate the impact on DUT posed by the transient phenomena. For instance, capacitor endurance test.

	Power Outage
	Voltage Rise
	Voltage Fall

2. Program Mode

This mode allows users to set ceiling and floor specifications to produce PASS/FAIL result after the measurement is done. It can also show test results for each test procedure or only show the last result. There are ten sets of Program mode and each set has 50 sets of memories. Each memory comprises 9 steps. Each Program will perform according to memories sequence, self-defined loops or designated steps to stop.

AC DC Power Source
Program Mode

3. Function Waveform (ARB ) Mode

Provide waveforms in seven categories and 20,000 waveform combinations so as to rapidly simulate distorted AC voltage waveforms.

AC DC Power Source

Sine waveform
Standard AC Waveform

AC Power Source

Triangle waveform
Power harmonic output simulation is triangle waveform

AC DC Power Source

Staircase waveform
Simulate square waveform and staircase waveform for commercial UPS

AC Power Source

Clipped sinewave
Simulate grid power supply heavy load waveform

AC DC Power Source

Crest factor waveform
Simulate rectified filter current waveform by capacitor input

AC Power Source

Surge waveform
Simulate grid power supply’s peak over-voltage

AC DC Power Source

Fourier series synthesized waveform
Simulate real output power waveform. Distorted power waveform is produced due to output impedance and non-linear effect such as inductance, capacitance, and parasitic capacitance effect. For example: motor.

4. Surge/Dip Control

Overlapping a Surge/Dip voltage on a normal voltage as the input power for DUT allows users to simulate Surge/Dip situation and evaluate DUT characteristics.

Dip

Surge

5. T Ipeak, hold function

T, Ipk Hold sets delay time (1ms~60 seconds) for measurement after the output of Ipeak value and the maximum value will be retrieved. Update will be preceded only if measured value is greater than the original value. Ipk Hold is for measuring transient inrush current as soon as the equipment power is on that is usually done by oscilloscope and current probe. T, Ipk Hold delay time setting can be applied to measure inrush current of sequentially activated DUT.

AC Power Source
Ipeak Measurement

6. Control Panel Characteristics

There are two control panel modes: Standard mode and Simple mode. Both modes are shown as below. Standard mode combines settings and AC Power Meter measurement window display. Users apply Function key (F1~F3) to select required measurement items. There are nine items for selection. Simple mode shows all measurement items on the display.

Standard Mode	Simple Mode

Accessories

CD ROM(User Manual, Programming Manual for APS-7000) x 1,
Power Cord(Region Dependent), GTL-123 Test Lead

Optional Accessories

APS-001 GPIB interface card
APS-002 RS-232 / USB interface (APS-7050, APS-7100)
APS-007 RS-232 interface card(APS-7200, APS-7300)
APS-003 Output Voltage Capacity (0~600Vrms)
APS-004 Output Frequency Capacity (45~999.9Hz)

GRA-423 APS-7050, APS-7100 rack mount kit
GRA-429 APS-7200 rack mount kit
GRA-430 APS-7300 rack mount kit
