• 31,000-count AC resistance reading,606,000-count DC voltage reading
• Resistance: 0.0001mQ~3.2kQ
• Voltage: 0.00001V~400.000V DC
• Manual range, automatic range switching function
• 0.5% resistance accuracy, 0.01% high precision voltage accuracy

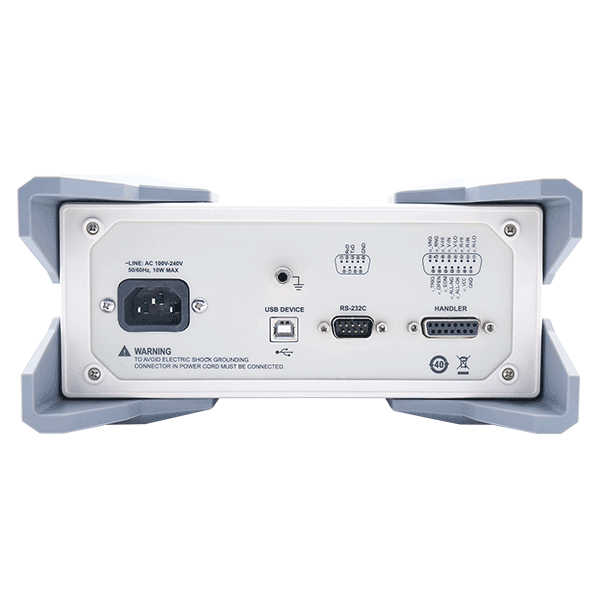

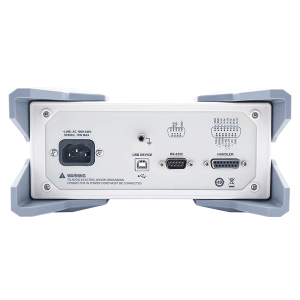

• Handler, RS-232, USB Device interfaces, SCPI and Modbus protocol
• With recording and statistics functions, up to 10,000 sets of data can be calculated 4.3 inches large screen LCD display

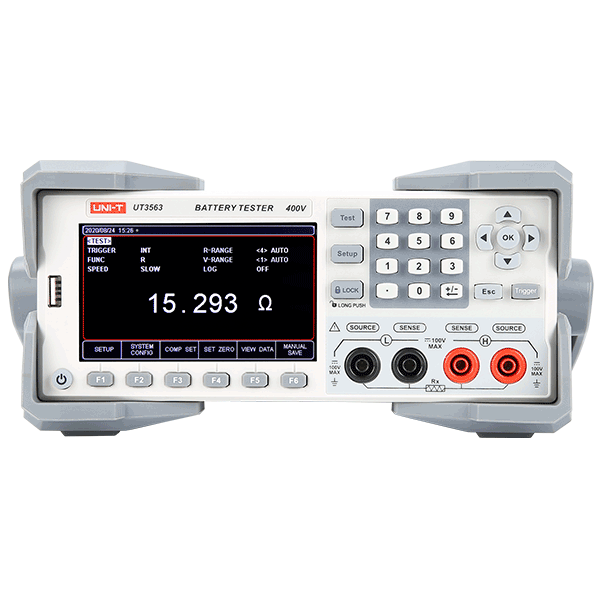

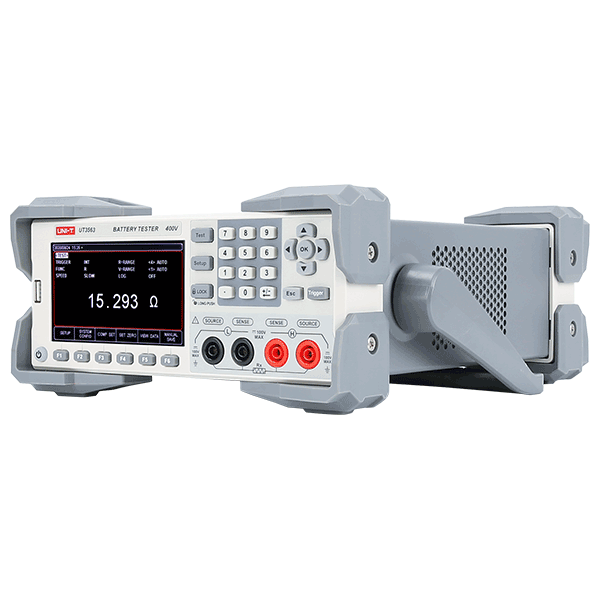

The UT3560 Series Battery Testers contain 2 models: UT3562 and UT3563, which are used to detect the battery internal resistance, include battery module test, battery R&D measurement, high-voltage battery set test, and high-speed assembly line tests of lithium battery, lead-acid battery and button battery.
