• High-accuracy: resistance 0.5%/ voltage 0.057o
• Resistance measurement range: 0.001m Q ~ 30.00 Q
• Voltage measurement range: 0.0001V - 100.000V
• Resolution: resistance: O.OOImQvoltage: 0.1mV
• Comparison mode: SEQ, PER , ABS
• The new AC internal resistance test method can measure almost all types of batteries
• 3.5-inch LCD main display
• 0.96 inch auxiliary display screen
• UPS can be measured directly online
• USB data storage and screenshot saving function
• Lithium battery power supply ( 2000mAh)
• Provide type C interface to realize remote control
• Support SCPI protocol
• Protection grade IP65

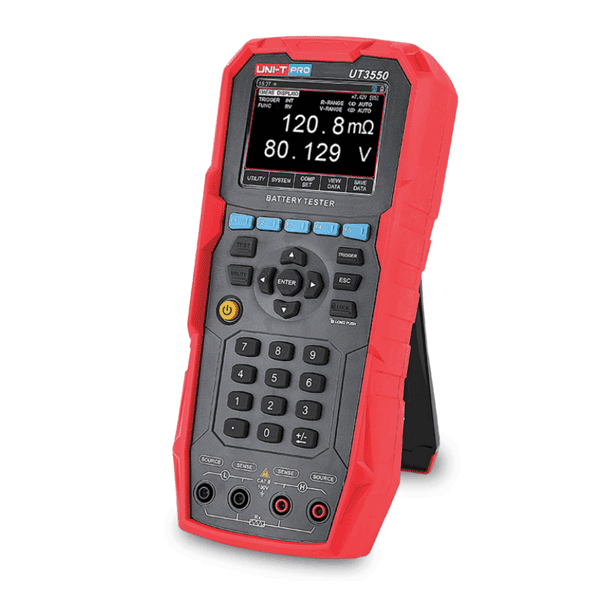

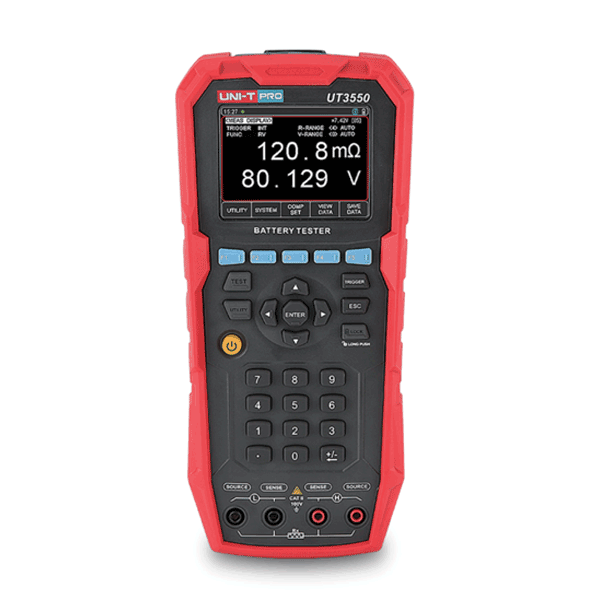

UT3550 is a hand-held battery tester with quickly during measurement. It has the portability time of handheld instruments and the superior performance of Bench instruments.It is a measuring instrument with high accuracy and high resolution. Equipped with USB type C interface for remote control and data acquisition and analysis.Support SCPI protocol. It is mainly used in the quality inspection of various batteries. UPS can be directly measured online with high accuracy.
UT3550 battery tester resistance measurement range : 0.001mQ~30.000, Voltage measurement range: 0.0001V ~ 100.00Vo The measuring range is wider than that of the common handheld internal resistance meter. UT3550 adopts AC method to measure internal resistance, which can measure a wide range of batteries. It can be measured during the working process of the battery without affecting the measurement accuracy and stability. It is also applicable to UPS measurement.
Filtering function With the host computer software, the data record UT3550 has three comparison methods: direct reading, percentage, and absolute value. It can be set according to the measurement object to help.
