- Actual interactive 3 d animation
- Friendly interface, easy to use
- Reasonable well control technology simulation
- Portable, easy to take away
- All the intelligence scores, fair assessment
- Industrial parts, stable and reliable
- Real-time voice prompt
ESIM-PDS9B portable drilling well control simulation training system is developed by Southwest Petroleum University and Chengdu Esimtech Petroleum Equipment Simulation Technology Exploitation Co., Ltd. This system provides well control simulation training, which is portable with full functions, and meets the standards of IADC and IWCF. The system simulates various working conditions, parameters and relations between the parameters in petroleum engineering process by mathematical models, such as pressure, torque, drilling rate, discharge rate, etc.
Actual interactive 3 d animation
Friendly interface, easy to use
Reasonable well control technology simulation
Portable, easy to take away
All the intelligence scores, fair assessment
Industrial parts, stable and reliable
Real-time voice prompt
Operation voltage: 220V/ 50Hz AC
Power consumption: < 1000 Watt
Display resolution: at least 1024*768
Average working time between malfunction: ≥5000 hours
 |
 |
 |
 |
 |

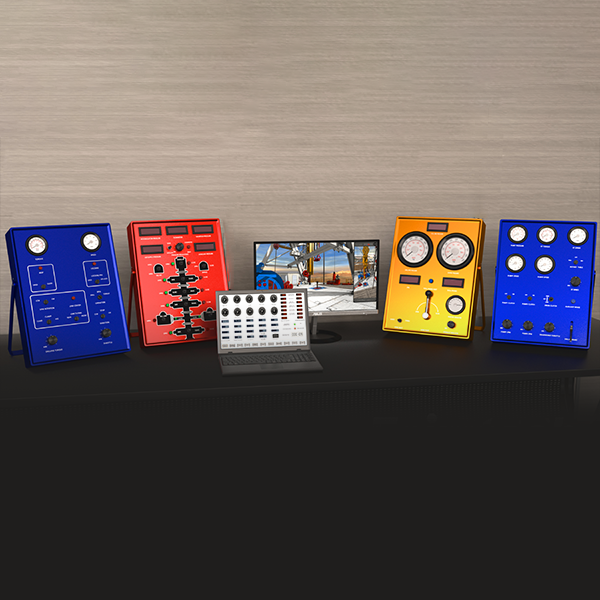

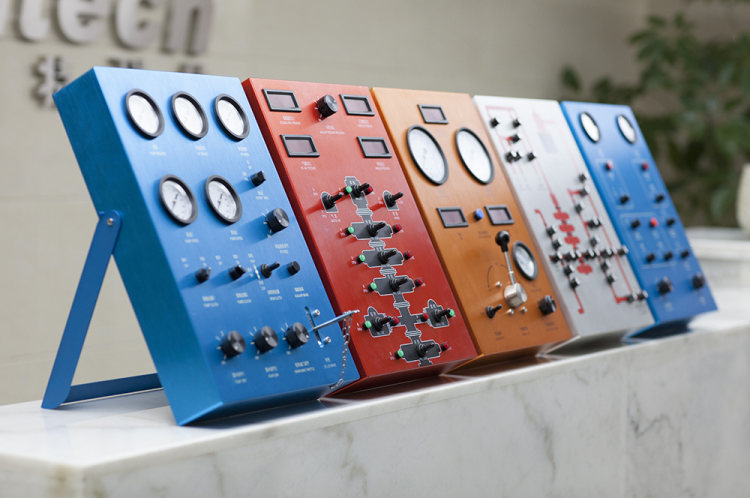

| Driller panel | Top drive panel | BOP panel | Choke panel | Manifold panel |
1. Shutting-in operation
(1) Tripping in
(2) Shutting in operation when overflow occurs during tripping in and out
(3) Shutting in operation when overflow occurs during tripping in and out drill collar
(4) Shutting in operation when overflow occurs in barren hole
2. Well killing operation
(1) Well killing with driller’s method
(2) Well killing with engineer’s method
(3) Well killing in barren hole
