- Fully simulating real system
- 3D animation display
- Accident setting function
- Step by Step working mode
- Lifelike sound effect
- Automatic scoring function
- Student information management function
ESIM-FTD1 top drive simulation training system is developed aiming for training the operation of top drive device. It can provide training items of all top drive operation and common accident handling. It can be used for training for driller/ driller assistant, technicians, and drilling team leader. Through training with the system, trainee can master the operation method of top drive and also handling skill of common accidents.
Fully simulating real system

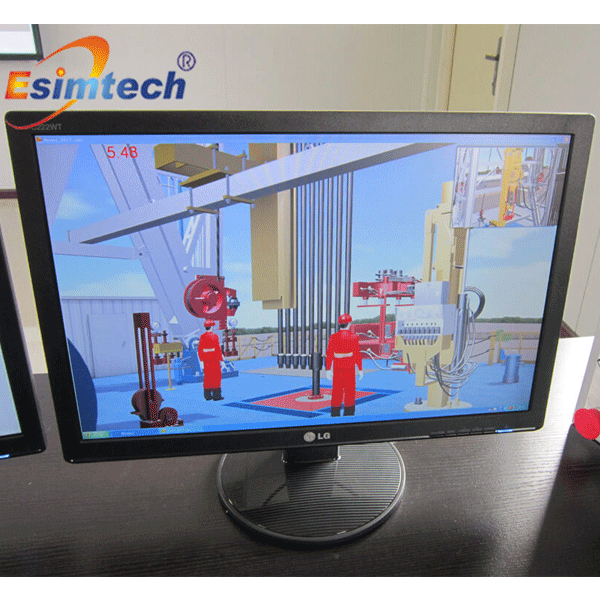

3D animation display
Accident setting function
Step by Step working mode
Lifelike sound effect
Automatic scoring function
Student information management function
1. Power: 220V/50Hz AC
2. Power consumption: <3000W
3. Resolution: 1920*1080
4. Average working time without failure: ≥5000 hours
5. Area:≥10*8.5m
6. Working temperature: 0??30?
7. Relative humidity: <90%
8. Seismic intensity: <6
1. 3D animation display of top drive working principle
(1) Turret lock
(2) IBOP
(3) Top drive rotation
(4) Links tilting
2. Step-by-Step working mode
(1) Tripping in
(2) Tripping out
(3) Top drive making up
(4) Top drive breaking out
(5) Normal drilling
3. Non-sequence operation mode
(1) Tripping in and out
(2) Drilling
