- Driller chair control console
- Non sequence drilling operation mode
- Creating training snapshot according to real well condition
- Full size, real device operational environment
- Friendly user interface
- 3D, interactive animation
- Real time voice prompt
- Advanced and precise physical-mathematical mode
- Systematic training content and flexible configuration
- Intelligent scoring, fair and square
- Industrial PLC controlling, high stability and reliability
- Real sound effect and alarm system

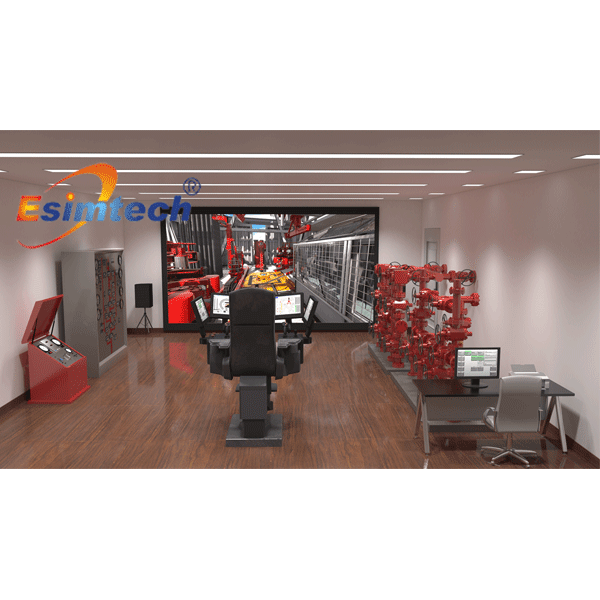

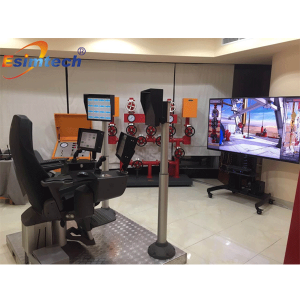

ESIM-FCC11 cyberchair drilling simulator satisfies the advanced technical standard and the training requirements of IADC and IWCF. LCD or LED screen presents the real time 3D animation. The sound effect that simulates the real rig floor. It makes the students feel as if personally on the scene. Based on technologies such as advanced computer controlling, artificial intelligence technology, visualization technology, virtual reality and network technology, combined with strict simulation of drilling engineer process and reliable physical-mathematical model, this system provides various training projects such as tripping in and out, drilling, well control, equipment fault detecting and treatment of drilling accident and troubles. Non-sequence drilling operation mode which is different from the stereotype training mode enables students to operate freely on the basis of snapshot.
Driller chair control console
Non sequence drilling operation mode
Creating training snapshot according to real well condition
Full size, real device operational environment
Friendly user interface
3D, interactive animation
Real time voice prompt
Advanced and precise physical-mathematical mode
Systematic training content and flexible configuration
Intelligent scoring, fair and square
Industrial PLC controlling, high stability and reliability
Real sound effect and alarm system
Operation voltage: 110~220V/ 50~60 Hz AC
Device power consumption:2.5 KW
LED power consumption: 13KW
Working temperature: 0~30 ?
Area: ≥40 square meters
1.Tripping in operation
(1) Normal tripping in
(2) Slacking off operation
2.Tripping out operation
(1)Normal tripping out
(2)Getting overpull operation
3. Drilling operation
(1) Normal drilling and picking up stand
(2) Drilling operation under different formation drillabilities
(3) Normal drilling and drilling with bouncing bit
4. Judgment and treatment of down-hole accidents
(1) Wall sticking
(2) Sand settling
(3) Balling-up
5. Shutting -in operation
(1) Shutting in operation when overflow occurs during drilling
(2) Shutting in operation when overflow occurs during tripping in and out
(3) Shutting in operation when overflow occurs during tripping in and out collar
(4)Shutting in operation when overflow occurs in barren hole
6. Well killing operation
(1) Driller method
(2) Engineer method
(3) Overweight driller method
